(1.80.1[02]) - POWER TAKE - OFF (540 RPM)

Запчасти Case IH JX1095N (1.80.1[02]) - POWER TAKE - OFF (540 RPM) (07) - HYDRAULIC SYSTEM

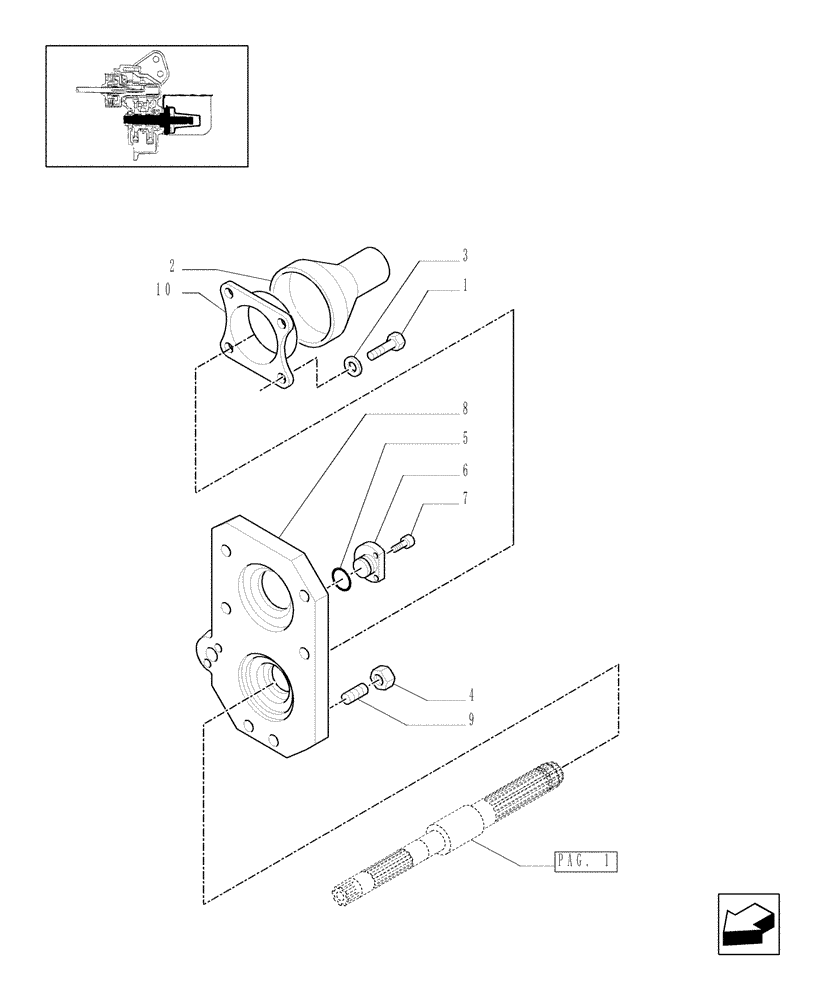

Схема запчастей Case IH JX1095N - (1.80.1[02]) - POWER TAKE - OFF (540 RPM) (07) - HYDRAULIC SYSTEM
1
5
2
6
4
pag. 1
7
9
10
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80120228

SCREW

M8x20

4шт.

2

5171520

SHIELD,132mm L

1шт.

3

10569374

LOCK WASHER,M8

4шт.

4

43362

NUT,M8 x 1.25, Cl 10

6шт.

5

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(M14 ID x 1.78 Thk), L/Cab

1шт.

6

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

L/CAB

1шт.

7

80300806

SCREW

M5x10, L/Cab

2шт.

8

47133661

COVER

1шт.

9

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

10

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.
