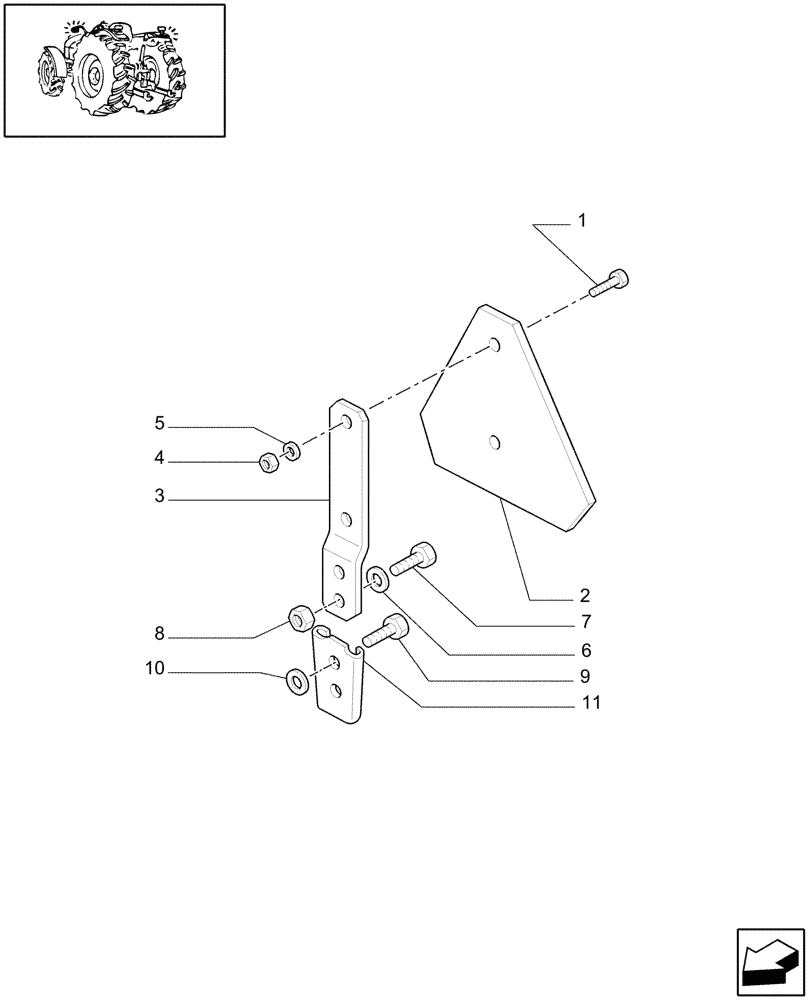

Запчасти Case IH JX1095N (1.75.6/01) - (VAR.007) NA PACKAGE- RETROREFLECTOR SUPPORT (06) - ELECTRICAL SYSTEMS

1

10376411

SCREW

M6 x 10

2шт.

2

86547710

EMBLEM

KIT SMV

1шт.

3

5148516

BRACKET

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

5

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

87776279

BRACKET

1

1шт.
