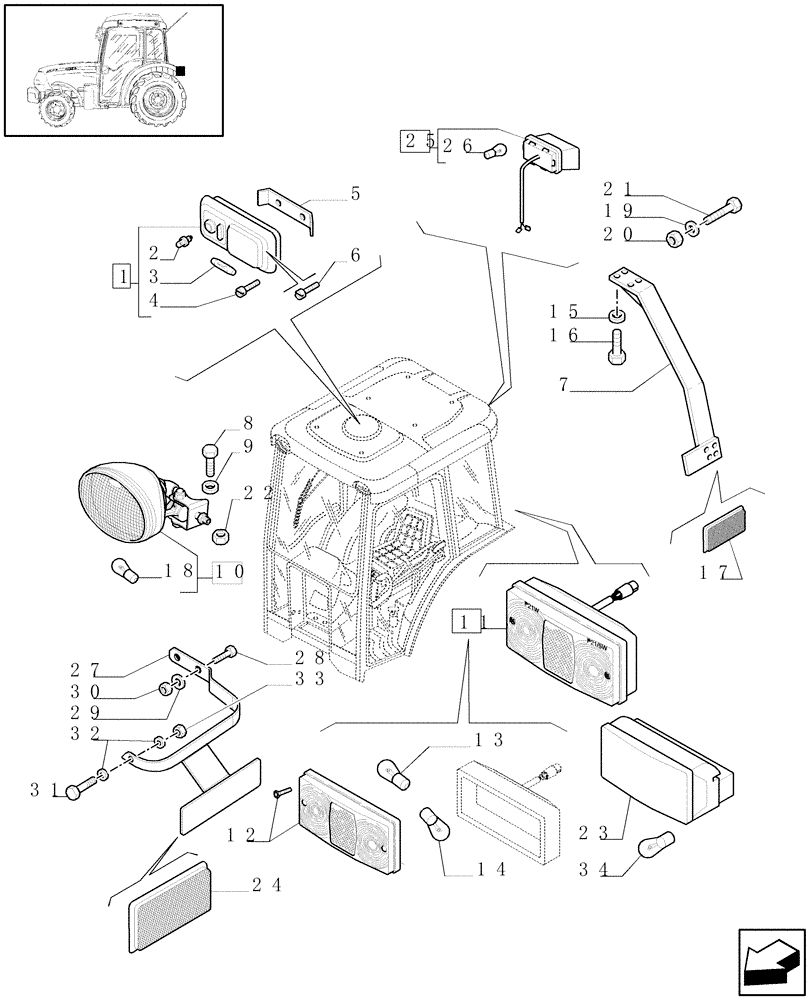

Запчасти Case IH JX1095N (1.75.6[02]) - LIGHTING COMPONENTS - W/CAB (06) - ELECTRICAL SYSTEMS

1

5141635

CEILING LAMP

Assy.

1шт.

2

14144190

BULB,W5W, 12V, 5W

12V/5W

1шт.

3

10863090

BULB,C5W, 12V, 5W

1шт.

4

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

5

44911604

BRACKET

1шт.

6

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

7

5190719

SUPPORT

1шт.

8

13181601

SCREW,M8 x 55mm

M8x55

4шт.

9

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

10

47056885

LAMP

Front/Rear LH

2шт.

10

47056879

LAMP

RH

2шт.

11

5170315

TAIL LAMP,12V, 21W, Amber/Red

Rear

2шт.

12

9971658

LENS

Red

2шт.

13

529068

BULB,#1156, 12V, 21W

2шт.

14

14144690

BULB,P21/5W, 12V, 21/5W

12V-5/21W

2шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

82002957

REFLECTOR

1шт.

18

14151590

BULB,H3, 12V, 55W

12V-55W

4шт.

19

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

20

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

21

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

M6x18

2шт.

22

16104414

LOCK NUT,M8 x 1.25

1шт.

23

5198445

TAIL LAMP,12V-21W, RH

RH, VAR.007, JX1095N, Incl. 34

1шт.

23

5198446

TAIL LAMP,12V-21W, LH

LH, VAR.007, JX1095N, Incl. 34

1шт.

24

5198365

REFLECTOR

VAR.007, JX1095N

2шт.

25

82000705

NUMBER PLATE LAMP,12V, 10W

1шт.

26

81867061

BULB,12V, 21W

1шт.

27

47123808

SUPPORT

RH, VAR.007, JX1095N

1шт.

27

47123809

SUPPORT

LH, VAR.007, JX1095N

1шт.

28

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

M6x18

4шт.

29

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

4шт.

30

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

31

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

32

14446804

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4x7

4шт.

33

10794014

NUT,M4, Cl 8

2шт.

34

14151090

BULB

12V

2шт.
