(1.75.4/05) - (VAR.608) AIR CONDITIONING/CONDITIONER - ELECTRIC SYSTEM, CABLES

Запчасти Case IH JX1095N (1.75.4/05) - (VAR.608) AIR CONDITIONING/CONDITIONER - ELECTRIC SYSTEM, CABLES (06) - ELECTRICAL SYSTEMS

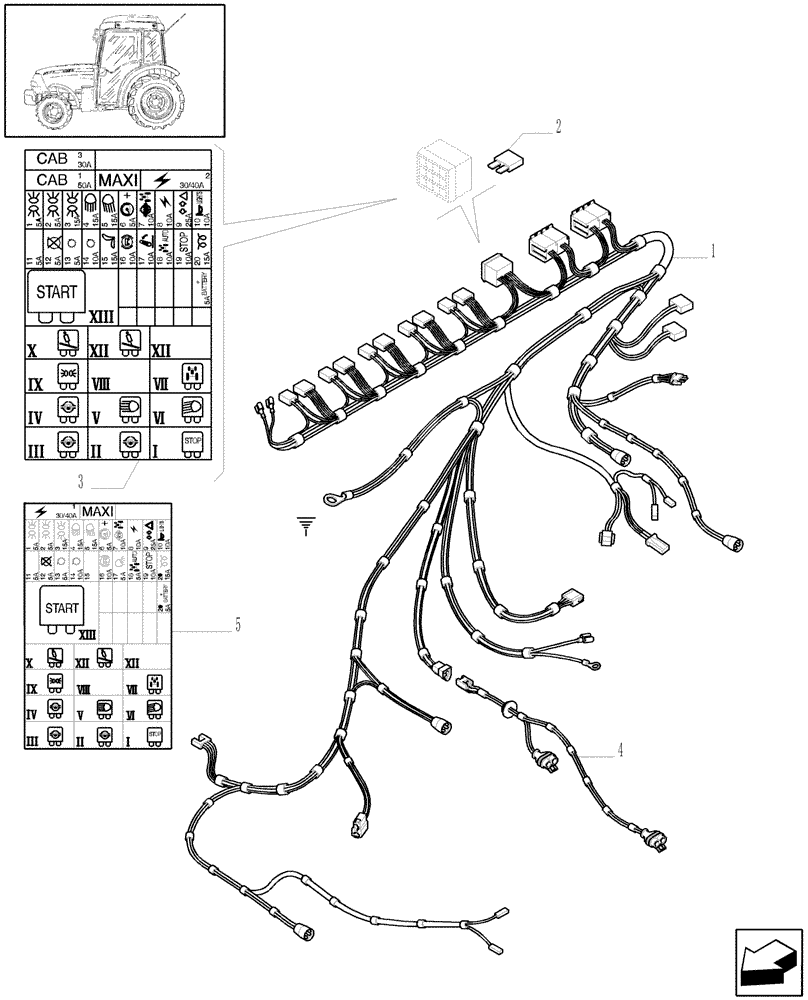

Схема запчастей Case IH JX1095N - (1.75.4/05) - (VAR.608) AIR CONDITIONING/CONDITIONER - ELECTRIC SYSTEM, CABLES (06) - ELECTRICAL SYSTEMS
3
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47130344

ELECTRIC CABLE

Incl. Ref. 2, Serial Range: -C5294

1шт.

1

87524706

ELECTRIC CABLE

Incl. Ref. 2, Start Serial: D5294

1шт.

2

87693742

FUSE,5A

1шт.

2

84090658

FUSE,Lt Blue, 15 Amp

1шт.

2

9504310

FUSE

1шт.

3

47134783

DATA PLAQUE

, Serial Range: -C5348

1шт.

4

5175159

ELECTRIC CABLE

1шт.

5

47134782

DATA PLAQUE

, Start Serial: D5348

1шт.

Выбрано товаров: 8
