Запчасти Case IH JX1095N (1.75.4/03[01]) - (VAR.271) HI-LO - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

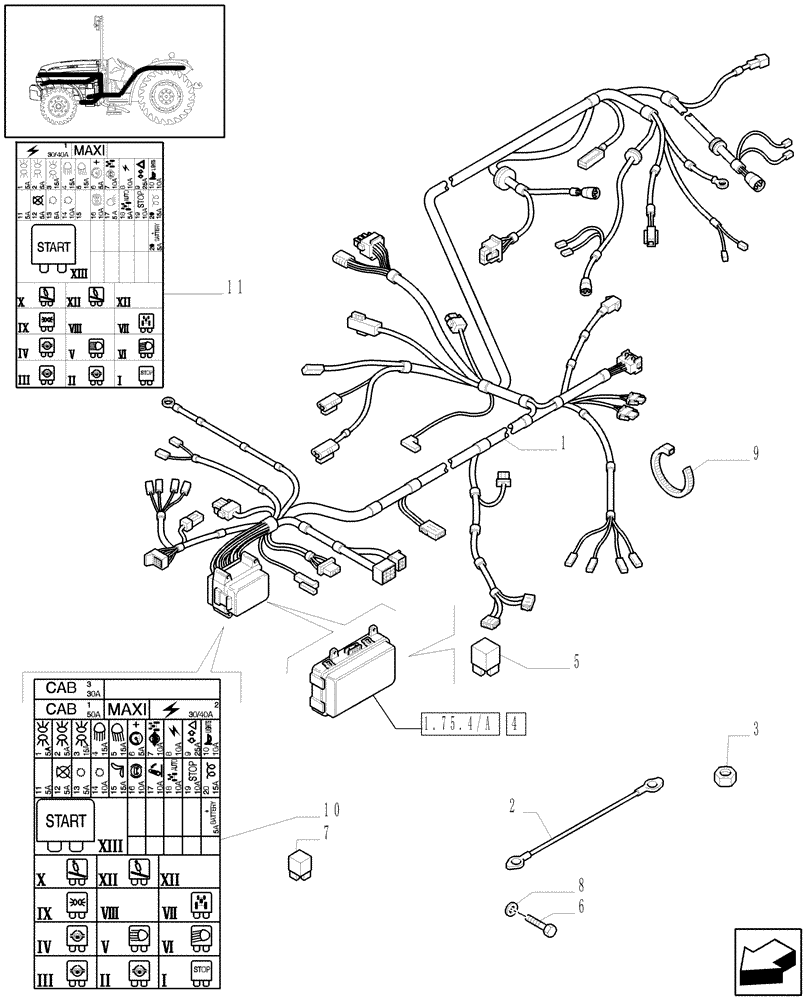

Схема запчастей Case IH JX1095N - (1.75.4/03[01]) - (VAR.271) HI-LO - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS
9
6
5
7
3
1.75.4/a
1
8
11
4
2
10

Артикул

Название

Примечание

Количество

1

47130341

ELECTRIC CABLE

Main, 2WD, W/CAB, Serial Range: -HJC049702

1шт.

1

47130333

ELECTRIC CABLE

Main, 2WD, L/CAB, JX1095N, Serial Range: -HJC049702

1шт.

1

87312999

ELECTRIC CABLE

Main, 2WD, W/CAB, Start Serial: HJC049703

1шт.

1

87312958

ELECTRIC CABLE

Main, 2WD, L/CAB, JX1095N, Start Serial: HJC049703

1шт.

2

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJC075427

1шт.

2

87570576

ELECTRIC CABLE

, Start Serial: HJC075428

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

5198692

FUSE HOLDER

7 Way

1шт.

5

5171083

RELAY,12V, 20A, N.O.

12V-20A, Enclosure

1шт.

5

5171084

RELAY,12V, 20A, N.C.

12V-20A, Commutation

1шт.

5

83989947

RELAY,70A

70A

1шт.

6

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

7

10395890

FUSE,5A, Mini, Beige

6шт.

7

87522597

FUSE,10A, Mini, Red

4шт.

7

10401290

FUSE,25 amp Mini

25A

1шт.

7

87524877

FUSE,15A, Mini, Blue

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

8

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

8

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

DIA=6

1шт.

9

5143428

CABLE TIE,116mm L

CABLE STRAP L/CAB

21шт.

10

47134783

DATA PLAQUE

2WD, L/Cab, JX1095N, Serial Range: -C5348

1шт.

11

47134782

DATA PLAQUE

2WD, L/Cab, JX1095N, Start Serial: D5348

1шт.

Выбрано товаров: 22
