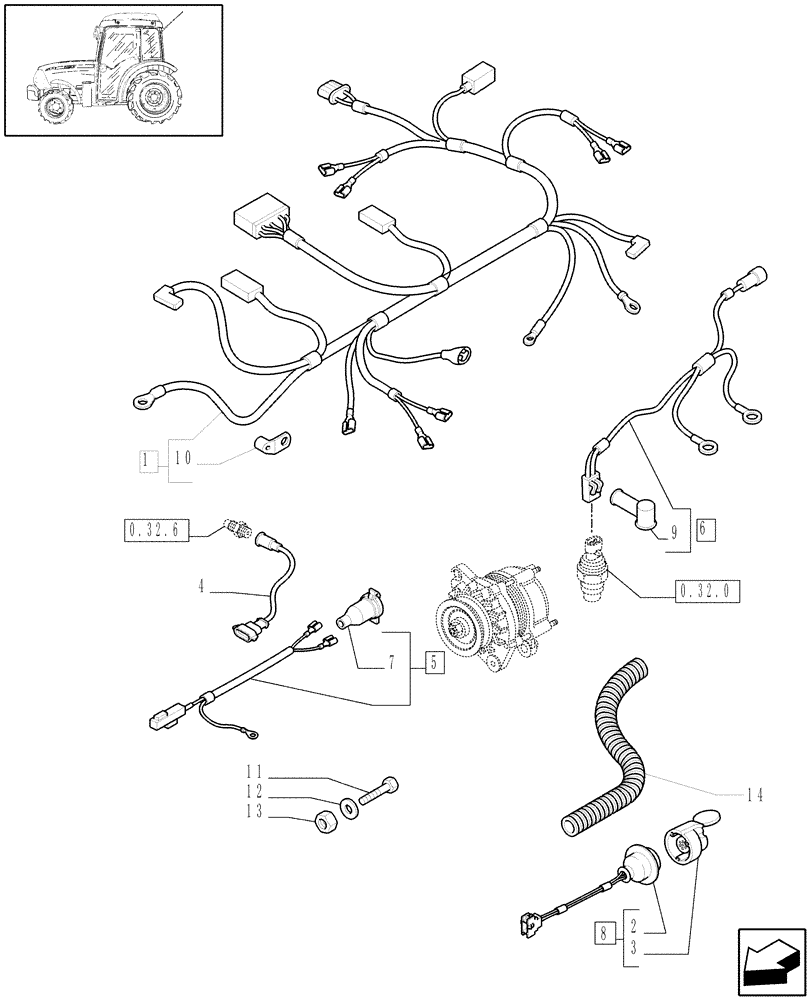

Запчасти Case IH JX1095N (1.75.4/01[03]) - AUXILIARY CABLES - W/CAB (06) - ELECTRICAL SYSTEMS

1

47133117

ELECTRIC CABLE

Front

1шт.

2

5188076

ELECTRIC CABLE

7 Pole

1шт.

3

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

4

47133107

WIRE HARNESS

, Serial Range: -HJC023412

1шт.

For engine water temperature sensor

1шт.

5

5195322

ELECTRIC CABLE

25A ISO

1шт.

6

47133100

ELECTRIC CABLE

, Serial Range: -HJC023412

1шт.

STOP ENGINE & KSB

1шт.

6

504088077

WIRE HARNESS

, Start Serial: HJC023413

1шт.

STOP ENGINE & KSB

1шт.

7

5170243

POWER SOCKET,25A

25A ISO

1шт.

8

5196941

ELECTRIC CABLE

Assy

1шт.

9

47135748

PROTECTION CAP

1шт.

10

47135836

CABLE TERMINAL

1шт.

11

13272924

SCREW,M4 x 35mm

M4x35

3шт.

12

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

13

10794014

NUT,M4, Cl 8

3шт.

14

5189616

PLASTIC-RUBBER TUBE

1шт.
