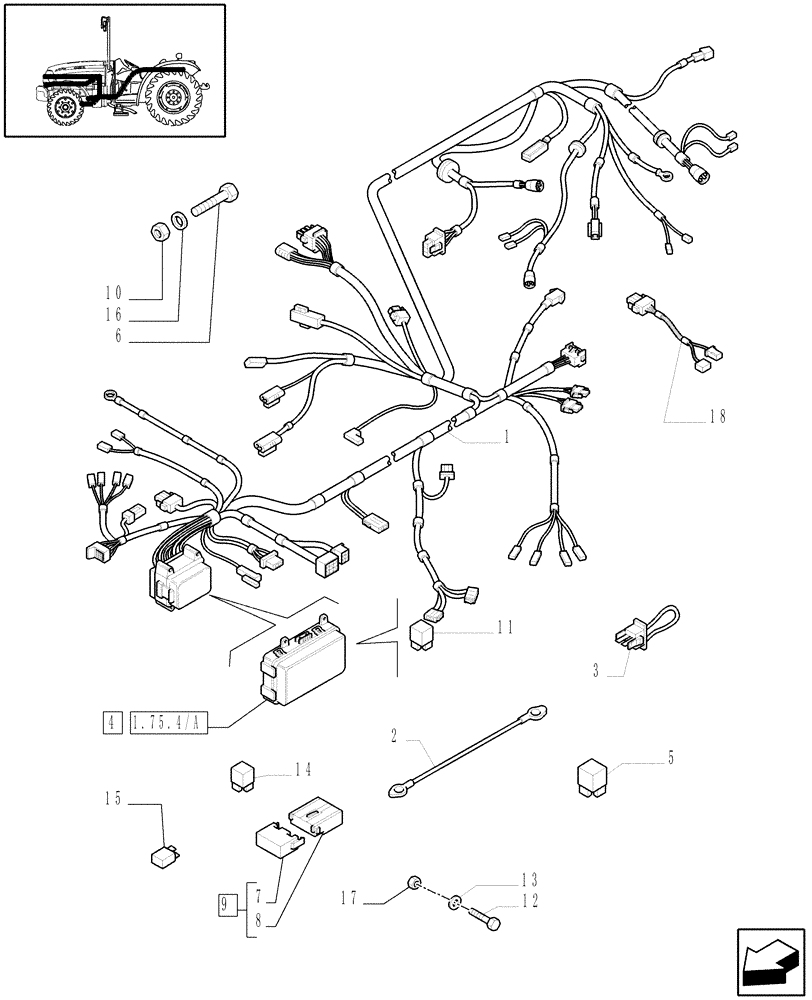

Запчасти Case IH JX1095N (1.75.4/01[01]) - AUXILIARY CABLES - W/CAB (06) - ELECTRICAL SYSTEMS

1

47130339

ELECTRIC CABLE

Main, 2WD, JX1095N, Serial Range: -HJC049702

1шт.

1

47130345

ELECTRIC CABLE

Main, 4WD, Serial Range: -HJC049702

1шт.

1

47130341

ELECTRIC CABLE

Main, 2WD, JX1095V, Serial Range: -HJC049702

1шт.

1

87312999

ELECTRIC CABLE

Main, 2WD, JX1095V, Serial Range: HJC049703-C5294

1шт.

1

87312987

ELECTRIC CABLE

Main, 2WD, JX1095N, Serial Range: HJC049703-C5294

1шт.

1

87313008

ELECTRIC CABLE

Main, 4WD, Serial Range: HJC049703-C5294

1шт.

1

87398053

ELECTRIC CABLE

Main, 2WD, JX1095N, Start Serial: D5294

1шт.

1

87398056

ELECTRIC CABLE

Main, 4WD, Start Serial: D5294

1шт.

1

87398055

ELECTRIC CABLE

Main, 2WD, JX1095V, Start Serial: D5294

1шт.

2

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJC075427

1шт.

2

87570576

ELECTRIC CABLE

, Start Serial: HJC075428

1шт.

3

47125756

JUMPER

Jumper C21, 4WD, Serial Range: -C5294

1шт.

3

87371844

ELECTRIC CABLE

Jumper C21, Start Serial: D5294

1шт.

4

5198692

FUSE HOLDER

7 Way

1шт.

5

5171083

RELAY,12V, 20A, N.O.

12V-20A,, Enclosure

1шт.

5

5171084

RELAY,12V, 20A, N.C.

12V-20A,,Commutation

1шт.

6

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

7

5173265

COVER

1шт.

8

5173266

FUSE HOLDER

1шт.

9

5176999

COVER

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

11

87693742

FUSE,5A

1шт.

11

9811773

FUSE,10A, Micro, Red

1шт.

11

84090658

FUSE,Lt Blue, 15 Amp

1шт.

11

83989947

RELAY,70A

70FA

1шт.

12

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

13

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

14

5173264

FUSE,30A, Maxi, Green

30A

1шт.

14

5173263

FUSE,50A, Maxi, Red

50A

1шт.

15

10395890

FUSE,5A, Mini, Beige

7шт.

15

87522597

FUSE,10A, Mini, Red

6шт.

15

87524877

FUSE,15A, Mini, Blue

5шт.

15

10401290

FUSE,25 amp Mini

25A

1шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

16

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

DIA=6

4шт.

17

10794014

NUT,M4, Cl 8

2шт.

18

87319903

ELECTRIC CABLE

4WD, Start Serial: HJC049703

1шт.

Electrohydr. 4WD Extension Harness

1шт.

18

87319904

ELECTRIC CABLE

4WD, JX1095V, VAR.933

1шт.

Electrohydr. 4WD Extension Harness W/Steering Sensor

1шт.
