Запчасти Case IH JX1095N (1.75.1/02) - (VAR.297) HI-LO NA - ELECTRIC CONTROLS, SWITCHES, MEASURING DEVICE AND RELAYS (06) - ELECTRICAL SYSTEMS

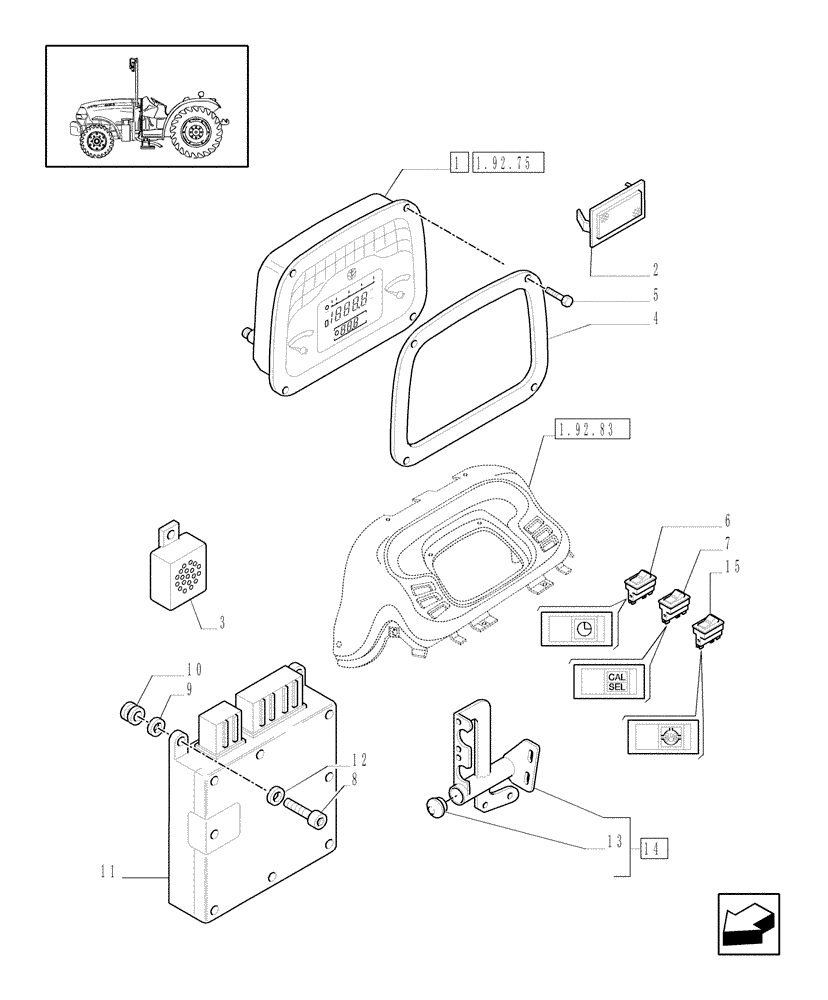

Схема запчастей Case IH JX1095N - (1.75.1/02) - (VAR.297) HI-LO NA - ELECTRIC CONTROLS, SWITCHES, MEASURING DEVICE AND RELAYS (06) - ELECTRICAL SYSTEMS
9
15
13
1.92.75
1.92.83
7
3
12
6
11
5
14
2
8
1
10
4

Артикул

Название

Примечание

Количество

1

47125972

MEASURING INSTRUMENT

Assy.

1шт.

2

5166218

PLUG,Switch

1шт.

3

5188605

BUZZER,12V, 0.7A

1шт.

4

5175371

GASKET,3mm Thk

1шт.

5

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

6

5189759

TOGGLE SWITCH

Clock Adj.

1шт.

7

5189760

TOGGLE SWITCH

Calibration/Selection

1шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

9

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

10

5175382

RUBBER RING

DIA=10

1шт.

11

47137064

ECU

P/Shuttle Control, Serial Range: -C5651

1шт.

11

87575340R

REMAN ELECT CONTROL

P/Shuttle Control

1шт.

11

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

11

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

11

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

11

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

12

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

13

5176369

PLUG,21.2mm OD

1шт.

14

5182215

SUPPORT

1шт.

15

5186355

DIFF LOCK SWITCH

Diff. Lock, W/Cab, 2WD

1шт.

Выбрано товаров: 20
