Запчасти Case IH JX1095N (1.75.0/02) - (VAR.297) HI-LO NA - ELECTRIC CONTROLS, POWER-SHUTTLE CONTROL LEVER (06) - ELECTRICAL SYSTEMS

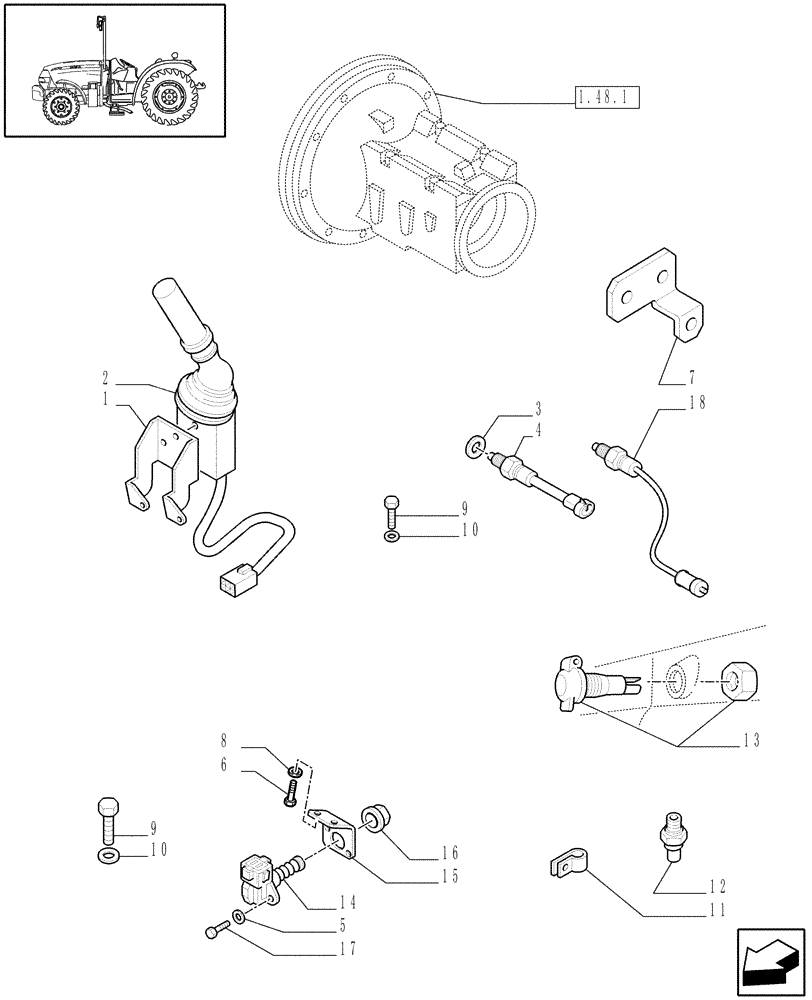

Схема запчастей Case IH JX1095N - (1.75.0/02) - (VAR.297) HI-LO NA - ELECTRIC CONTROLS, POWER-SHUTTLE CONTROL LEVER (06) - ELECTRICAL SYSTEMS
8
15
10
13
11
4
9
3
10
16
7
1.48.1
9
5
6
2
17
1
12
14
18

Артикул

Название

Примечание

Количество

1

5173849

BRACKET

1шт.

2

47132543

CONTROL

Power Shuttle, Serial Range: -C5550

1шт.

2

87577564

CONTROL

Power shottle, Start Serial: D5550

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

4

47132568

SWITCH

Grey, Front Synchro and Gear Lever, Serial Range: -C5561

2шт.

4

47132569

SWITCH

Green, Rear Synchro and Range Lever, Serial Range: -C5561

2шт.

5

80322355

WASHER

2шт.

6

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

7

5192743

RETAINER COLLAR

1шт.

8

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

9

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

7шт.

10

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

5шт.

11

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

L/Cab

1шт.

12

82036587

PRESSURE SWITCH

Engine Oil Pressure

1шт.

13

82002966

POWER SOCKET,M18 x 1

1шт.

14

87735366

SWITCH

Hand Brake

1шт.

15

5198050

BRACKET

1шт.

16

5198051

NUT

1шт.

17

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

18

87585979

SWITCH

Grey, Start Serial: D5561

1шт.

Front syncro and gear lever

1шт.

18

87585980

SWITCH

Green, Start Serial: D5561

1шт.

Rear syncro and range lever

1шт.

Выбрано товаров: 23
