Запчасти Case IH JX1095N (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

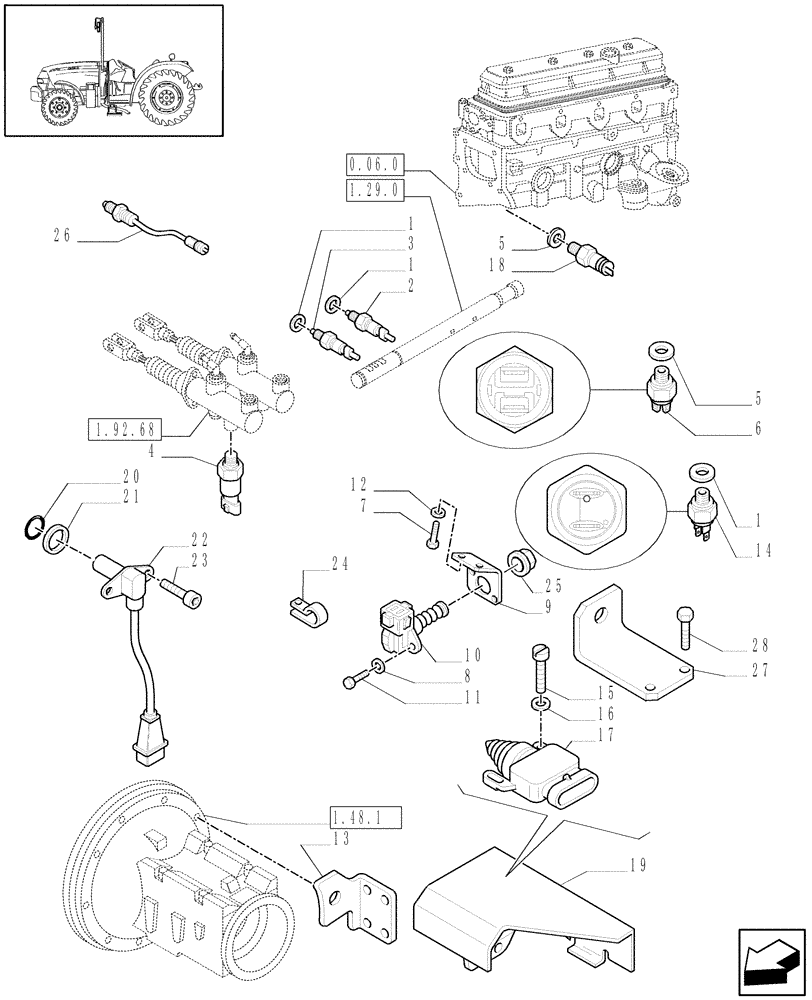

Схема запчастей Case IH JX1095N - (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
1.92.68
8
28
1.29.0
1
2
18
0.06.0
1
1.48.1
5
15
27
7
26
20
25
17
1
14
22
11
21
9
12
19
23
6
16
4
10
13
24
5
3

Артикул

Название

Примечание

Количество

1

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14x20

2шт.

2

47132956

SENSOR

Yellow, Neutral gear, Serial Range: -C5602

1шт.

3

47132957

SENSOR

Red, Auto 4WD

1шт.

4

5190018

PRESSURE SWITCH

Pressure (N.C.), Stop Lights

2шт.

5

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

2шт.

5

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

6

82030730

SWITCH ASSY

Oil, Transmission

1шт.

7

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

8

80322355

WASHER

2шт.

9

5198050

BRACKET

1шт.

10

87735366

SWITCH

Hand Brake

1шт.

11

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

12

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

5178431

SUPPORT

1шт.

14

82032837

SWITCH ASSY

4WD

1шт.

Hydraulic DT

1шт.

15

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

, Serial Range: -C6014

1шт.

16

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

, Serial Range: -C6014

1шт.

16

13550009

SEALING WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4x10, Start Serial: D6014

2шт.

17

47137022

SWITCH

PTO Safety, Serial Range: -C6014

1шт.

17

87484878

LIMIT SWITCH

, Start Serial: D6014

1шт.

18

82036587

PRESSURE SWITCH

Engine Oil Pressure

1шт.

19

5191810

COVER

1шт.

20

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(M14 ID x 1.78 Thk), W/Cab

1шт.

21

5153070

SPACER,15.3mm ID x 17.4mm OD x 4.5mm L

W/CAB

1шт.

22

87564764

SENSOR

PTO speed, W/CAB

2шт.

23

80300806

SCREW

W/CAB

1шт.

24

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

W/Cab

1шт.

25

5198051

NUT

1шт.

26

87598056

SWITCH

Yellow, Start Serial: D5602

1шт.

27

87481920

BRACKET

, Start Serial: D6014

1шт.

28

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

, Start Serial: D6014

2шт.

Выбрано товаров: 32
