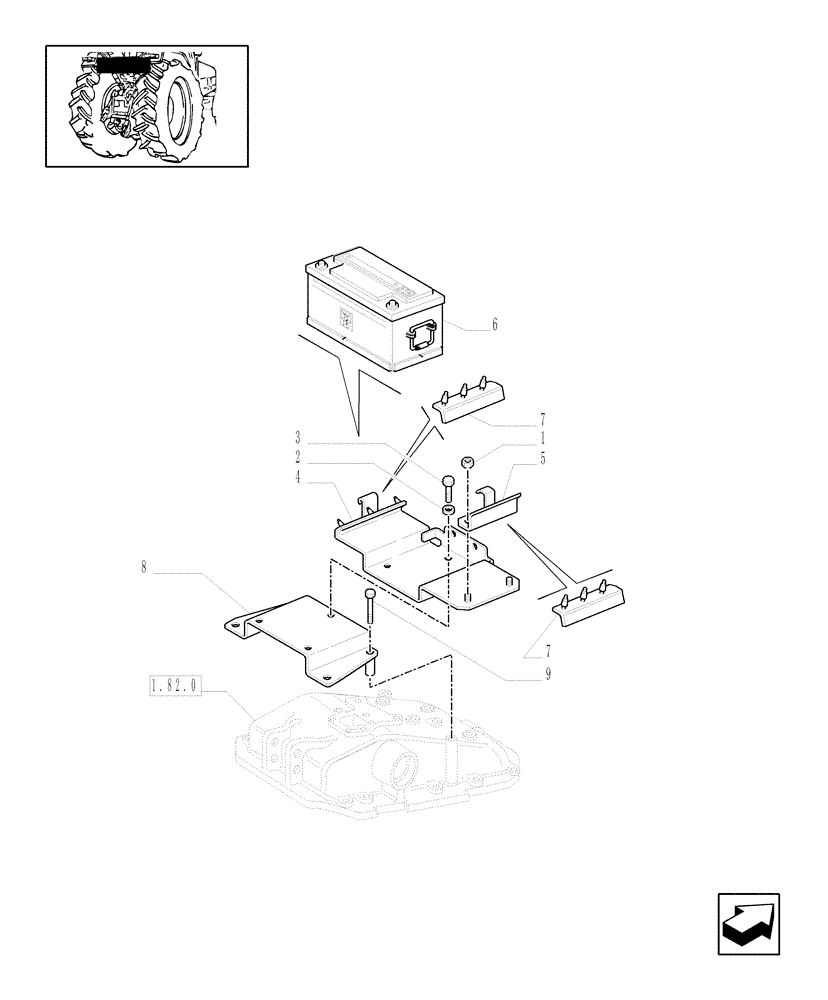

Запчасти Case IH JX1095N (1.74.3/01) - BATTERY MOUNTING - W/CAB (06) - ELECTRICAL SYSTEMS

1

16104127

NUT,M8 x 1.25, Cl 10

2шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

4

5188030

PLATE

Incl. Ref. 6, 7

1шт.

5

5173422

BRACKET

Incl. Ref. 7

1шт.

6

5199959

WET BATTERY

100AH

1шт.

6

B45630

WET BATTERY

U.S.

1шт.

6

B45630W

WET BATTERY

Wet, U.S.

1шт.

6

CB45630

BATTERY

Canada

1шт.

6

CB45630W

WET BATTERY

Wet, Canada

1шт.

7

4976669

INSULATOR BLOCK

2шт.

8

5188088

PLATE

JX1095N

1шт.

9

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

JX1095N

1шт.

9

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

JX1095N

1шт.
