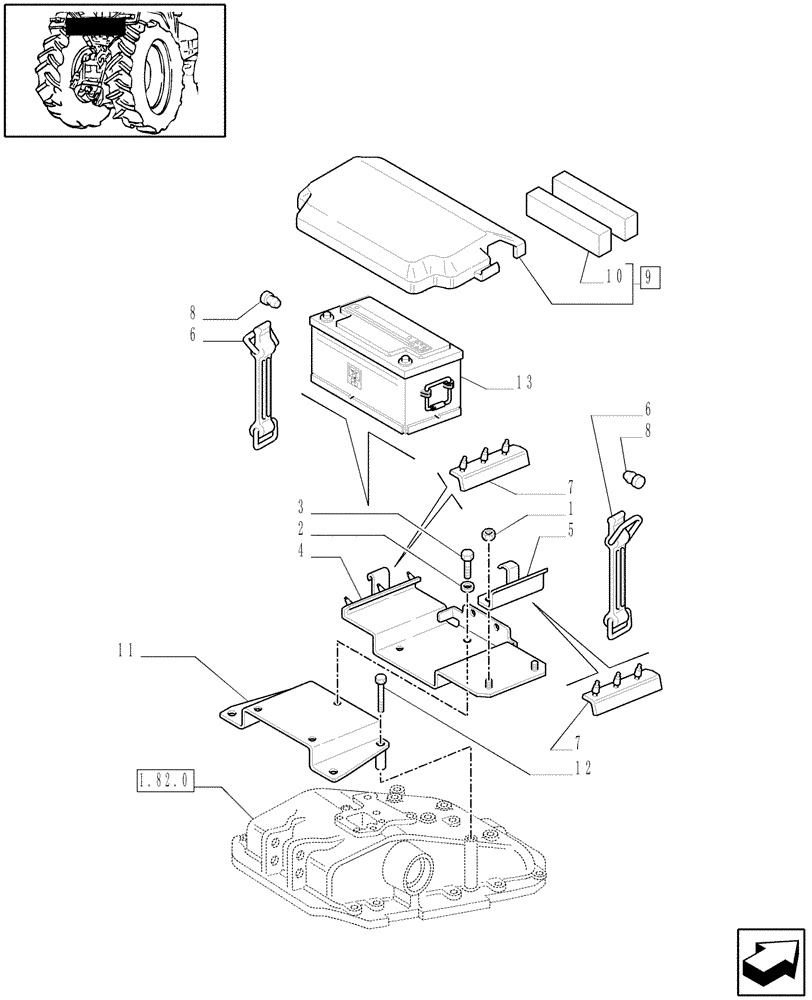

Запчасти Case IH JX1095N (1.74.3) - BATTERY MOUNTING - L/CAB (06) - ELECTRICAL SYSTEMS

1

16104127

NUT,M8 x 1.25, Cl 10

2шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

4

5188030

PLATE

Incl. Ref. 6, 7

1шт.

5

5173422

BRACKET

Incl. Ref. 7

1шт.

6

5171951

SECURING STRAP

2шт.

7

4976669

INSULATOR BLOCK

2шт.

8

14567080

FASTENER,Stud, Ribbed, 5.50mm x 4mm x 1mm, Plastic

2шт.

9

5178130

COVER

1шт.

10

5174025

INSULATOR,36mm W x 150mm L x 20mm Thk

2шт.

11

5188088

PLATE

JX1095N

2шт.

12

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

JX1095N

1шт.

12

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

JX1095N

1шт.

13

5199959

WET BATTERY

100AH

1шт.

13

B45630

WET BATTERY

U.S.

1шт.

13

B45630W

WET BATTERY

Wet, U.S.

1шт.

13

CB45630

BATTERY

Canada

1шт.

13

CB45630W

WET BATTERY

Wet, Canada

1шт.
