Запчасти Case IH JX1095N (1.68.5/01) - (VAR.320) RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKE - PIPES (05) - REAR AXLE

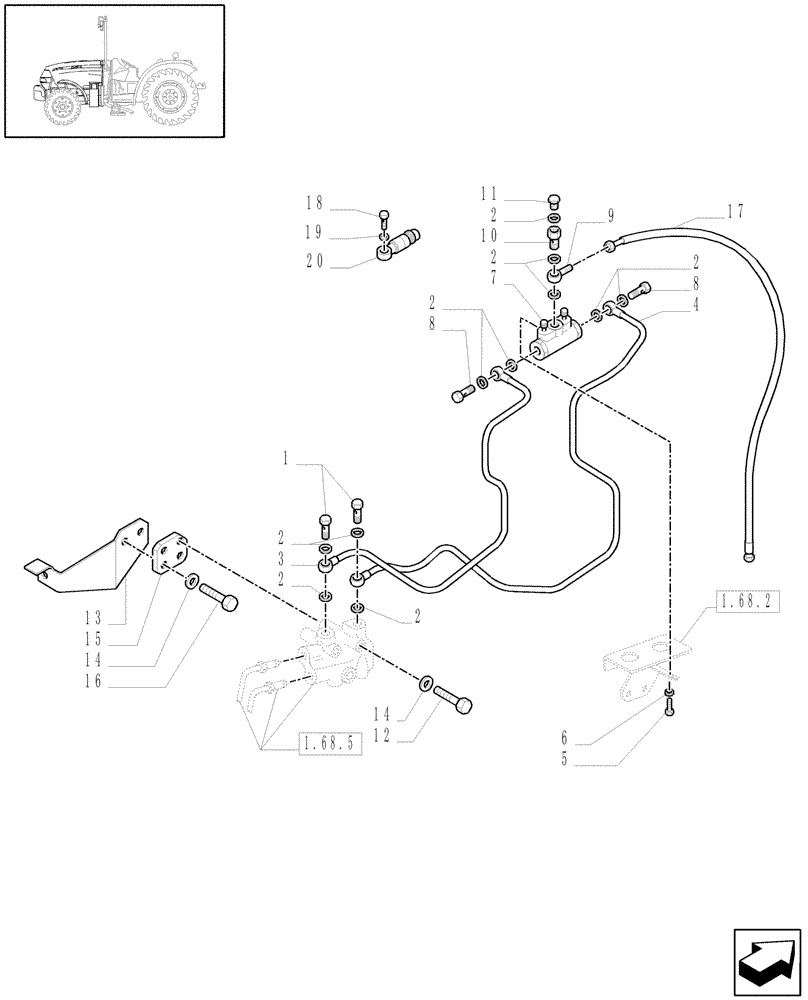

Схема запчастей Case IH JX1095N - (1.68.5/01) - (VAR.320) RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKE - PIPES (05) - REAR AXLE
20
19
11
2
10
7
14
2
12
6
9
2
13
14
1
2
16
5
2
1.68.2
2
18
8
17
2
8
1.68.5
4
15
3

Артикул

Название

Примечание

Количество

1

10185011

BANJO BOLT,M12 x 1.25 x 23mm

4шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

11шт.

3

5179340

RIGID TUBE

Upper

1шт.

4

5179325

RIGID TUBE

Lower

1шт.

5

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

6

10516674

LOCK WASHER,M8

1шт.

7

5143506

MASTER CYLINDER

Synchronizing

1шт.

8

5121685

BANJO BOLT,M12 x 1.5 x 23mm

2шт.

9

5155643

BANJO BOLT

1шт.

10

5185683

HYD CONNECTOR

, Serial Range: -C5314

1шт.

11

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

, Serial Range: -C5314

1шт.

12

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

13

5190007

SUPPORT

1шт.

14

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

15

5187887

PLATE

1шт.

16

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

17

87346575

FLEXIBLE HOSE,4.75 mm ID x 1450.00 mm

1шт.

18

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

, Start Serial: D5314

1шт.

19

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

, Start Serial: D5314

1шт.

20

82030175

BANJO FITTING,M8 x 1 x 53mm

, Start Serial: D5314

1шт.

Выбрано товаров: 20
