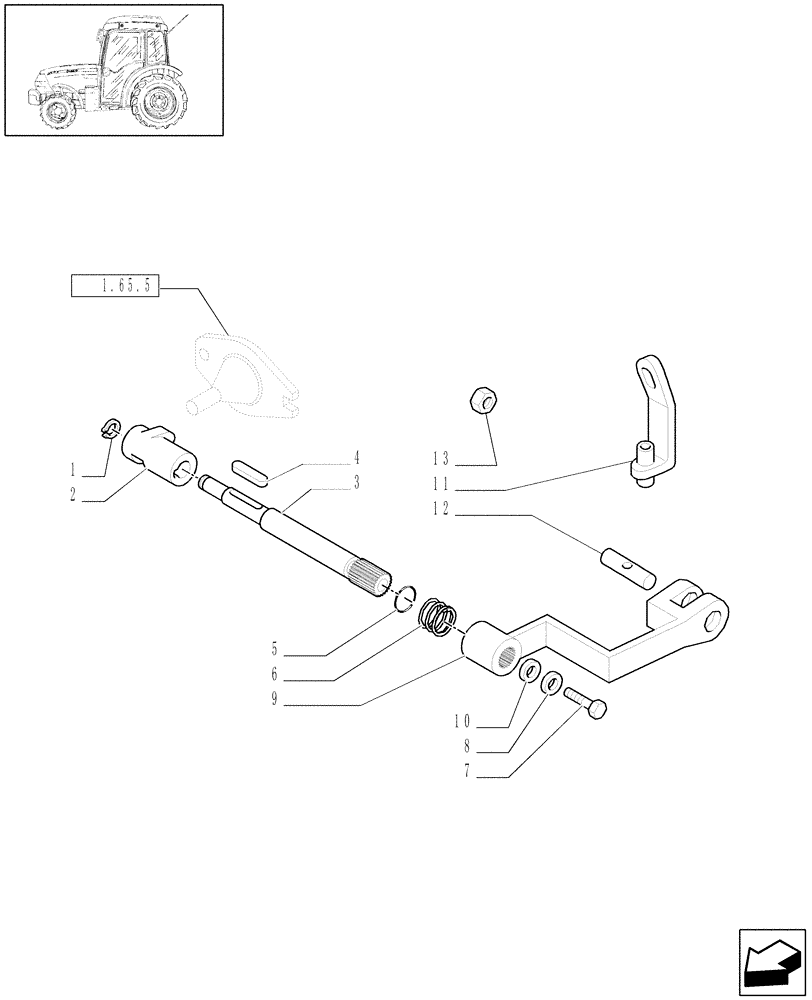

Запчасти Case IH JX1095N (1.67.2) - HANDBRAKE CONTROL (05) - REAR AXLE

1

80370024

CIRCLIP

DIA=20

1шт.

2

47132166

LEVER,OD 44mm, 66mm L

1шт.

3

47132169

PIN,27mm OD x 280mm L

1шт.

4

10619420

KEY,6mm x 6mm x 50mm

6x6x50

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

5178121

SPRING,59mm OD

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

1шт.

8

13578424

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

1шт.

9

47132185

LEVER

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

47132219

ROD-TIP,14mm OD x 50mm L

1шт.

12

47132201

PIN,21mm OD x 26mm L

1шт.

13

15503711

LOCK NUT,M10 x 1.25

1шт.
