Запчасти Case IH JX1095N (1.48.1[03]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

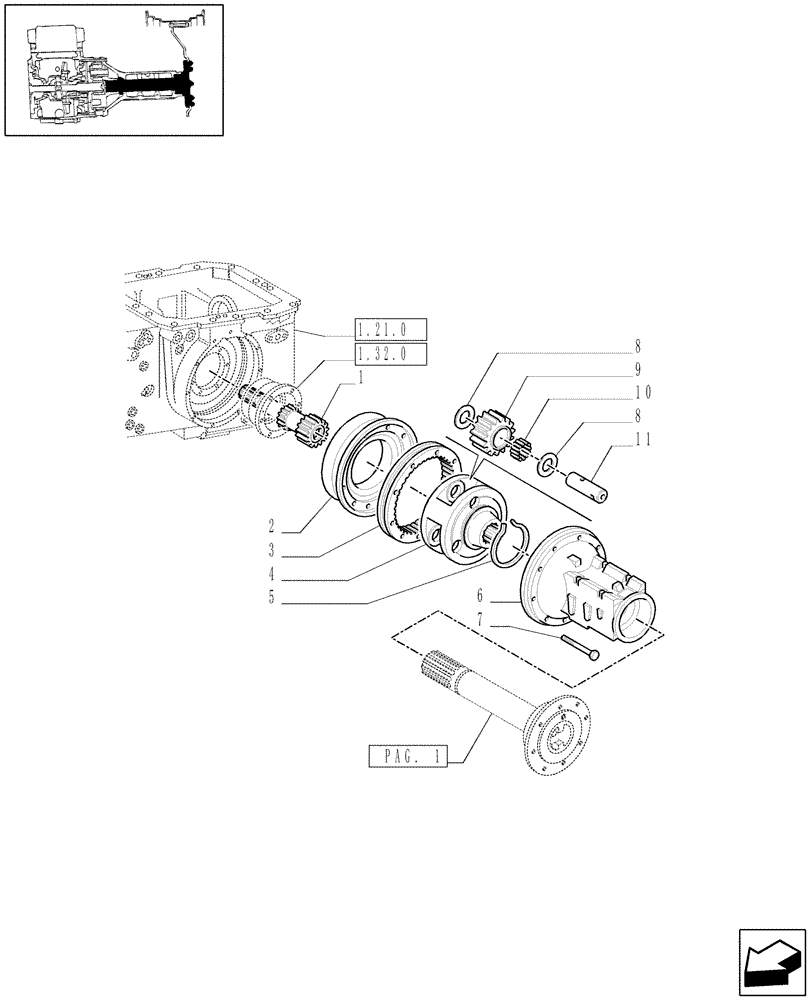

Схема запчастей Case IH JX1095N - (1.48.1[03]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE
1.32.0
6
7
3
pag. 1
5
8
11
10
8
1
2
9
4
1.21.0

Артикул

Название

Примечание

Количество

1

5180634

HALF SHAFT,215.5mm

RH

1шт.

1

5180635

HALF SHAFT,244.5mm

LH

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5168457

RING GEAR,244.1mm ID x 322mm OD x 27.5mm Tnk, 63T

2шт.

4

5168229

CARRIER

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

DIA=119

2шт.

6

5182007

SHAFT HOUSING

2шт.

7

15978131

BOLT,Hex, M14 x 1.5 x 120mm, Cl 10.9

JX1095V

20шт.

7

15978131

BOLT,Hex, M14 x 1.5 x 120mm, Cl 10.9

JX1095N

16шт.

7

11422124

BOLT,Hex, M14 x 1.5 x 130, 8.8

JX1095N

4шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5168456

GEAR,23T

6шт.

10

5168230

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 38mm W

35.7x49

6шт.

11

5124312

PIN,35.7mm OD x 82mm L

6шт.
