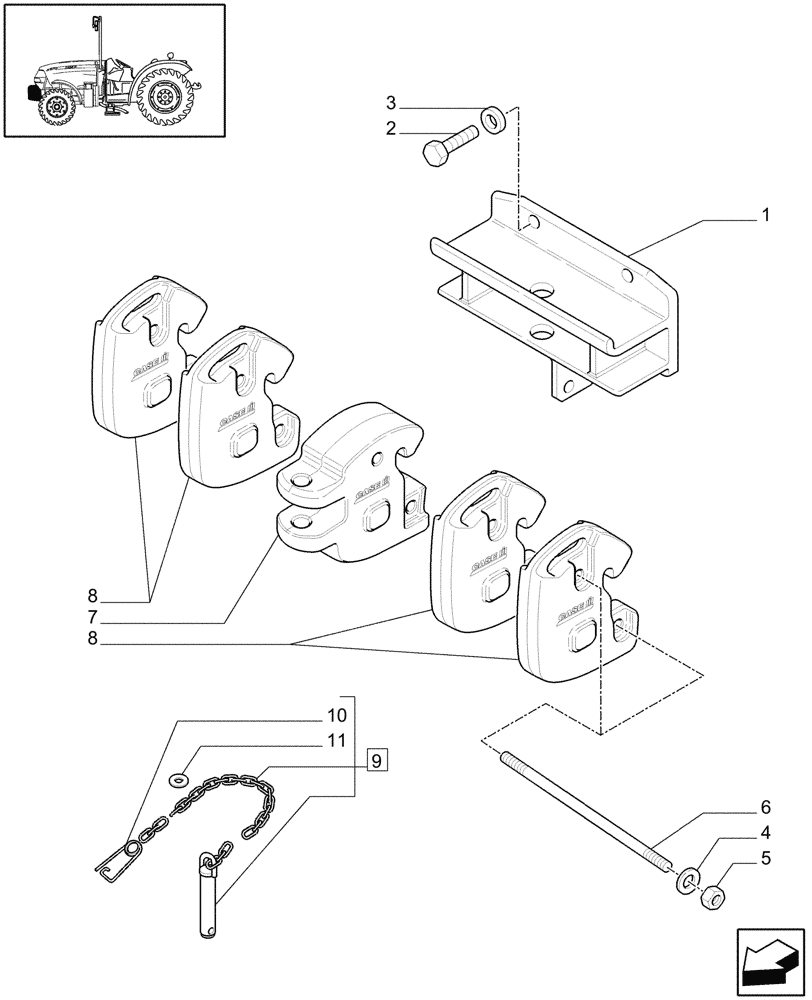

Запчасти Case IH JX1095N (1.44.0) - (VAR.168-225) FRONT WEIGHT & SUPPORT (04) - FRONT AXLE & STEERING

1

47135563

SUPPORT

1шт.

2

11124730

BOLT,Hex, M20 x 50mm, Cl 10.9, Full Thd

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

4

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

2шт.

5

15504021

NUT,M16 x 1.5

2шт.

6

47129331

TIE-ROD,M16 x 360mm L

M16x1.5x370, VAR.168

1шт.

7

47135622

WEIGHT,48Kg

48KG, VAR.168

1шт.

8

47135623

PLATE,25kg

25KG, VAR.168

4шт.

9

5171214

HITCH PIN,32mm OD x 120mm L

VAR.225

1шт.

10

5152004

HAIR PIN COTTER,195mm L

VAR.225

1шт.

11

44901192

SNAP RING,25mm ID

VAR.225

2шт.
