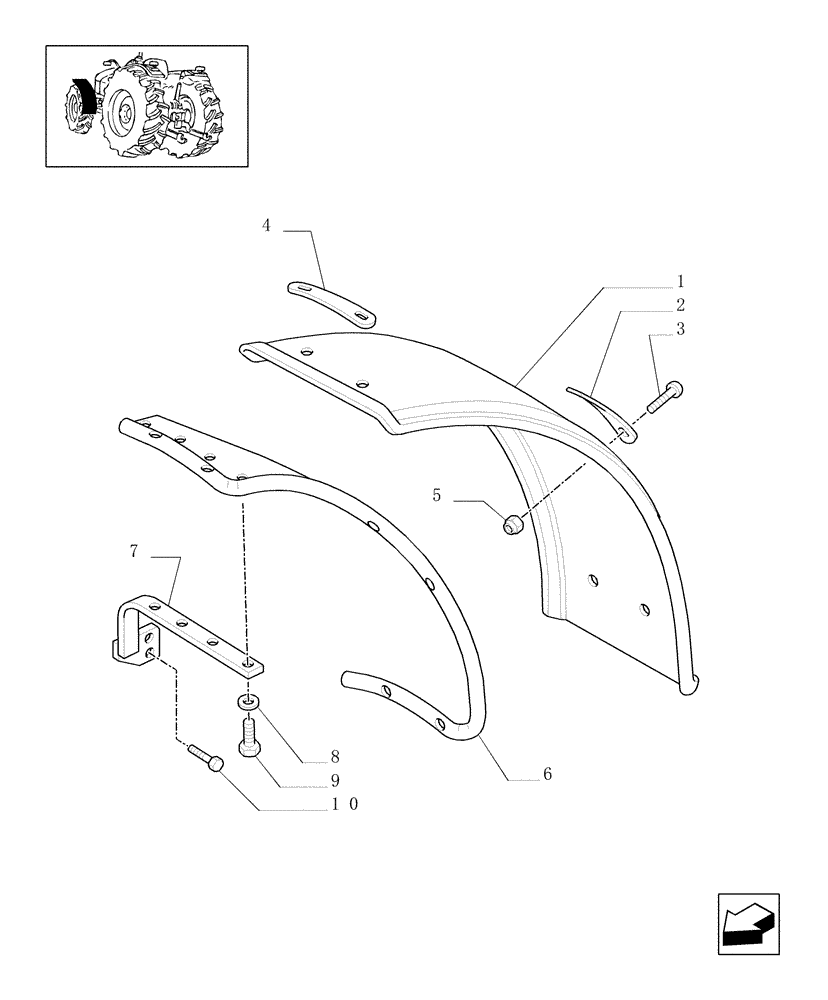

Запчасти Case IH JX1095N (1.43.0) - (VAR.860) 2WD FRONT MUDGUARDS (04) - FRONT AXLE & STEERING

1

5125270

COVER ASSY

2шт.

2

44906818

PLATE

2шт.

3

5189295

BOLT

12шт.

4

44906819

COVER PLATE

4шт.

5

16104121

NUT,M8 x 1.25, Cl 10

12шт.

6

5190385

SUPPORT

LH

1шт.

6

5190387

SUPPORT

RH

1шт.

7

5190355

BRACKET

LH

1шт.

7

5190352

BRACKET

RH

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

9

11227931

BOLT,Hex, M10 x 1.25 x 28mm, Cl 10.9, Full Thd

4шт.

10

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.
