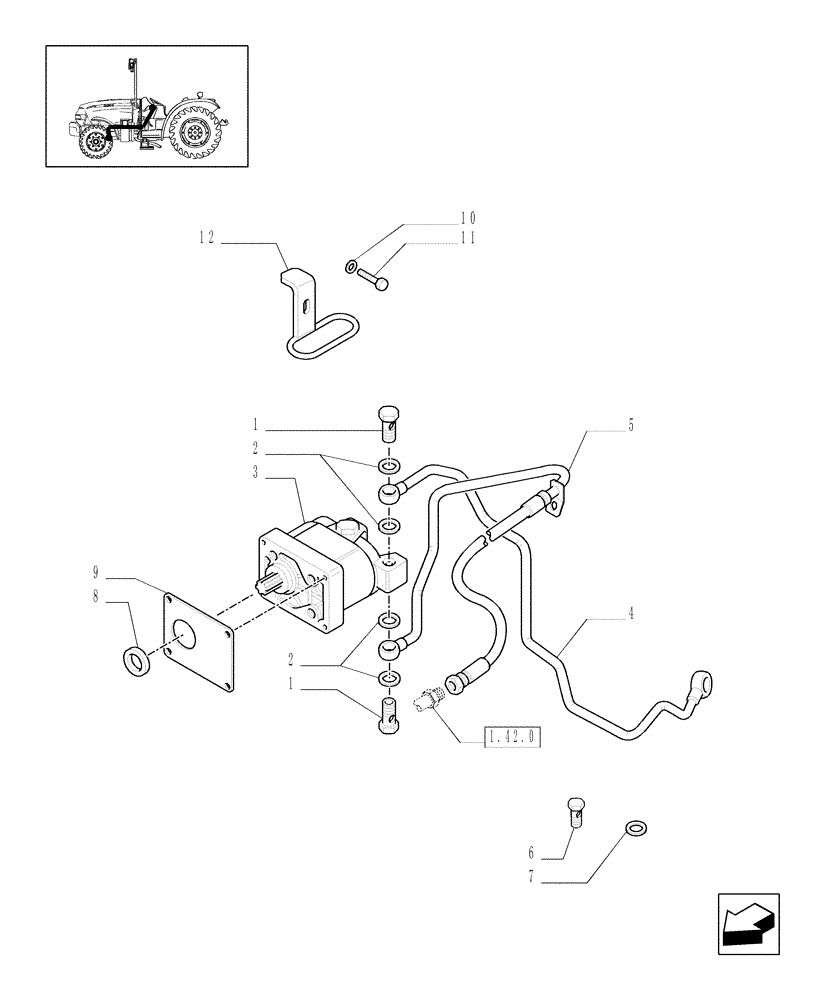

Запчасти Case IH JX1095N (1.42.0/02) - (VAR.297) HI-LO NA SERVO-ASSISTED STEERING HYDRAULIC SYSTEM, OIL PUMP AND PIPES (04) - FRONT AXLE & STEERING

1

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

2

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

3

5189830

ENGINE OIL PUMP

Assy.

1шт.

4

47136545

HYD TUBE

1шт.

5

87303774

HYD TUBE,12.70 mm OD

1шт.

6

10184417

BANJO BOLT,M16 x 1.5 x 31mm

1шт.

6

44909408

BANJO BOLT

M22

1шт.

7

4858609

WASHER,Brass

16x22

2шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

8

5118568

CENTERING RING

Centering

1шт.

9

5186310

SEAL

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

11

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

12

5199390

RING

1шт.
