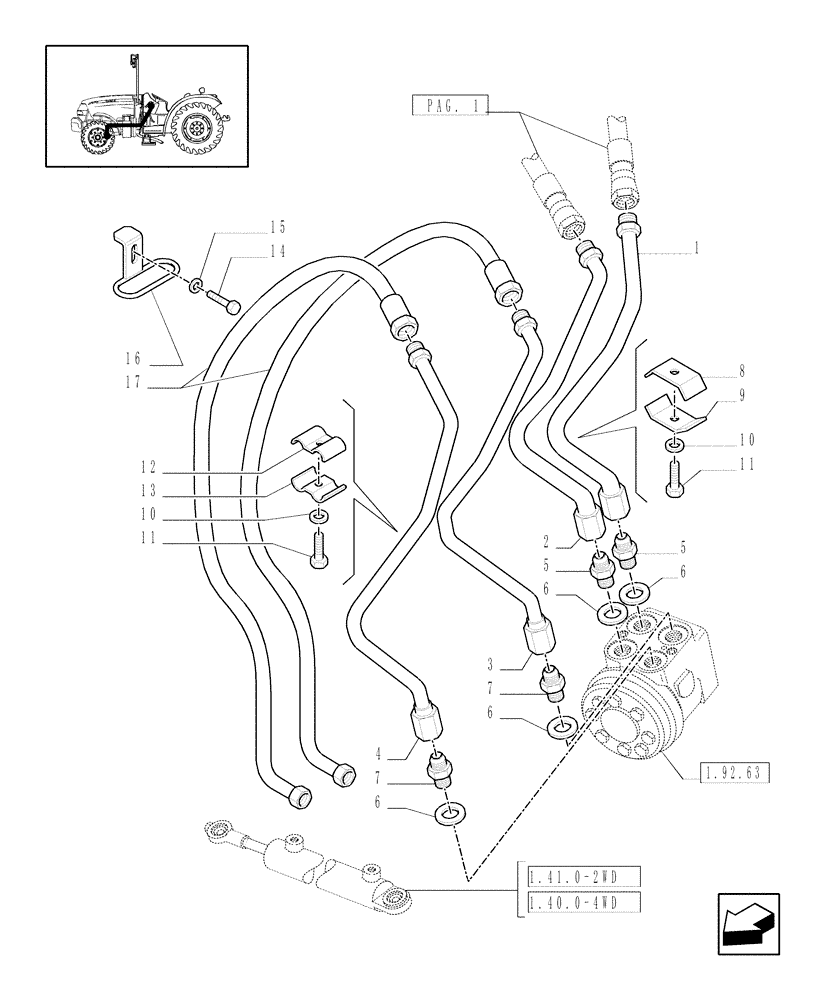

Запчасти Case IH JX1095N (1.42.0[02]) - SERVO - ASSISTED STEERING HYDRAULIC SYSTEM (04) - FRONT AXLE & STEERING

1

5189277

RIGID TUBE

In

1шт.

2

5189278

RIGID TUBE

Out

1шт.

3

5192145

HYD TUBE

To LH Cyl.

1шт.

4

5192143

HYD TUBE

To RH Cyl.

4шт.

5

5158807

HYD CONNECTOR

7/8-14, 1/2 675

2шт.

6

5170555

WASHER

1/2"

4шт.

7

5174421

HYD CONNECTOR

3/4"-16 x 1/2" Gas

2шт.

8

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

Front, M6

1шт.

9

5193550

CLAMP,6.5mm ID

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

5180016

BRACKET

M6

1шт.

13

5180153

BRACKET

1шт.

14

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

15

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

JX1095V

1шт.

16

5199390

RING

1шт.

17

5170482

FLEXIBLE HOSE,8mm ID x 1600mm L, SAE 100R1

2шт.

17

5179199

HOSE,8mm ID x 1800mm L, SAE 100R1

L=1800, JX1095N

2шт.
