Запчасти Case IH JX1095N (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE - HUB (04) - FRONT AXLE & STEERING

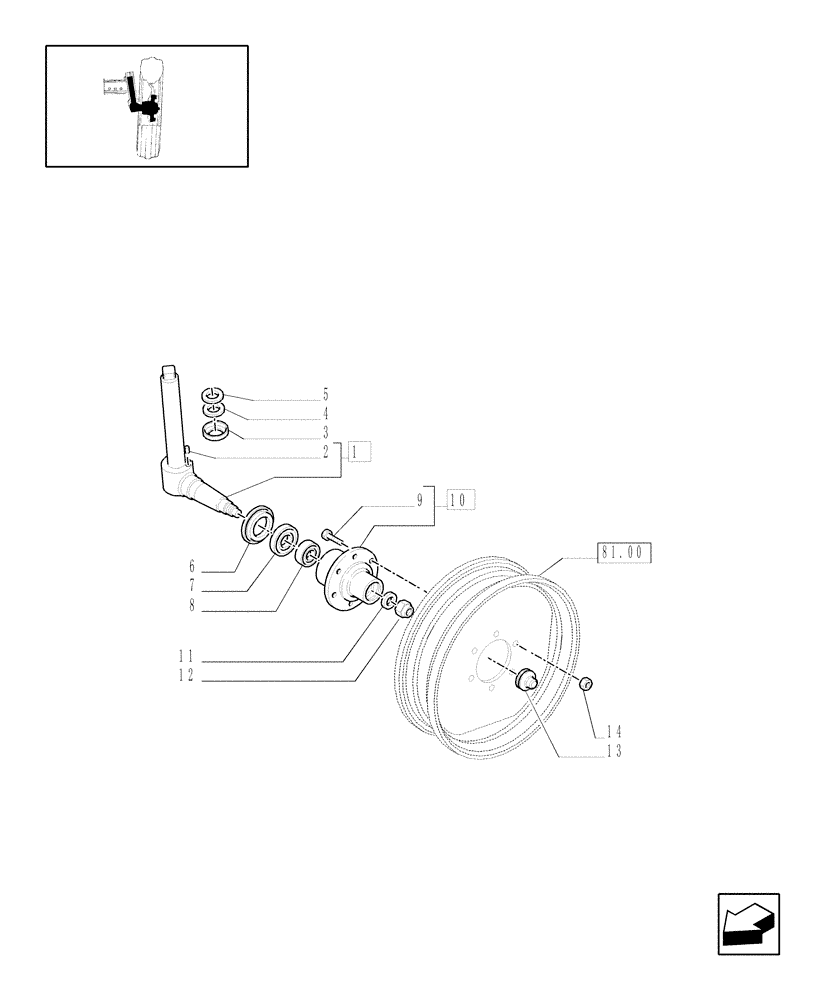

Схема запчастей Case IH JX1095N - (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE - HUB (04) - FRONT AXLE & STEERING
6
81.00
11
12
7
3
9
13
10
4
14
5
2
8
1

Артикул

Название

Примечание

Количество

1

5183585

STUB AXLE/STEERING S

JX1095V

2шт.

1

5190124

STUB AXLE/STEERING S

JX1095N

2шт.

2

10486110

DOWEL,M4 x 8

4x18

2шт.

3

5126277

CUP,30.5mm ID x 48.5mm OD x 7mm Thk

2шт.

4

5144754

THRUST WASHER,30mm ID x 48mm OD x 4mm Thk

2шт.

5

567499

THRUST WASHER,30mm ID x 40mm OD x 4mm Thk

2шт.

6

4951077

SEAL,50.7mm ID x 91.5mm OD x 11mm Thk

2шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

41.275x73.431x19.558

2шт.

8

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

2шт.

9

81816580

WHEEL BOLT,1/2" - 20 x 1 3/4"

12шт.

10

5183466

HUB

2шт.

11

559715

WASHER,20.5mm ID x 32mm OD

2шт.

12

14044271

NUT,Hex, M20 x 1.5

M20

2шт.

13

80249127

HUB CAP

2шт.

14

81815739

WHEEL NUT,1/2"-20, 0.65" High, ZND

12шт.

Выбрано товаров: 15
