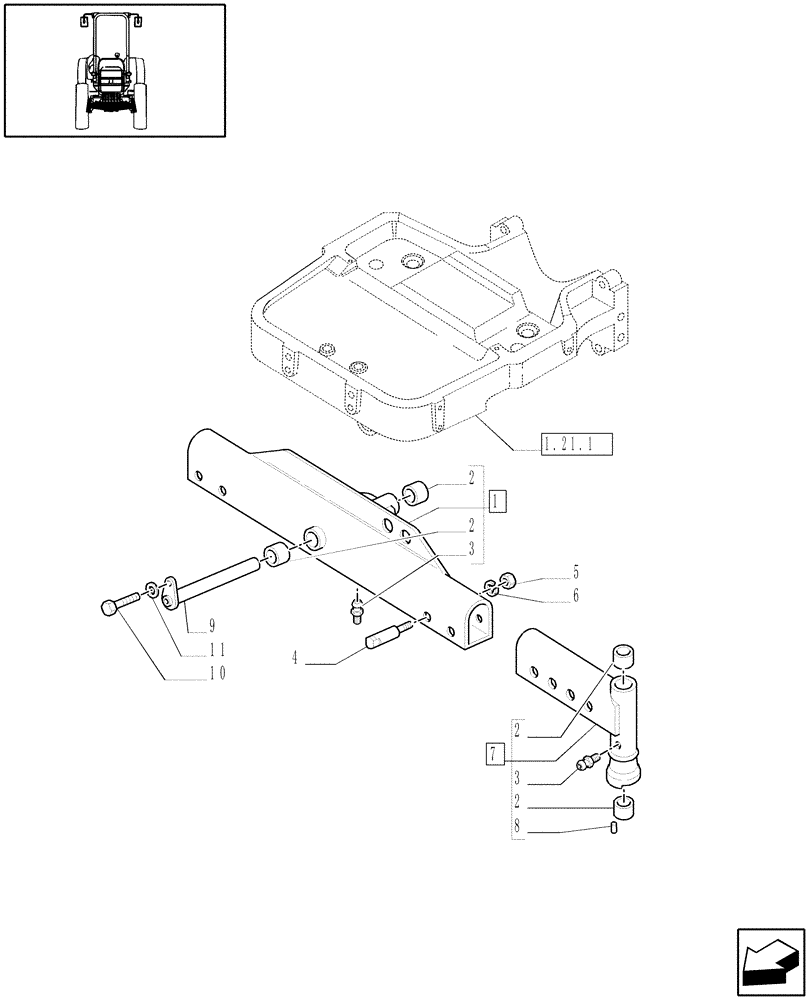

Запчасти Case IH JX1095N (1.41.0[01]) - 2WD FRONT AXLE (04) - FRONT AXLE & STEERING

1

5183887

BODY

Assy., Serial Range: -HJC076106

1шт.

1

87550895

BODY

Assy, Start Serial: HJC076107

1шт.

2

5126260

BUSHING,30mm ID x 40mm L

4шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

5126270

PIN,M14 x 1.5, 24mm OD x 94mm L

4шт.

5

10790421

NUT,M14 x 1.5, Cl 10

4шт.

6

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

7

5183699

TRACK ROD END ASSY

JX1095V

1шт.

7

5184685

TRACK ROD END ASSY

JX1095N

1шт.

8

10486110

DOWEL,M4 x 8

4x18

1шт.

9

5126252

LOCK PIN

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.
