(1.40.5/13) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/, 4WD W/FRONT BRAKES - PIPES

Запчасти Case IH JX1095N (1.40.5/13) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/, 4WD W/FRONT BRAKES - PIPES (04) - FRONT AXLE & STEERING

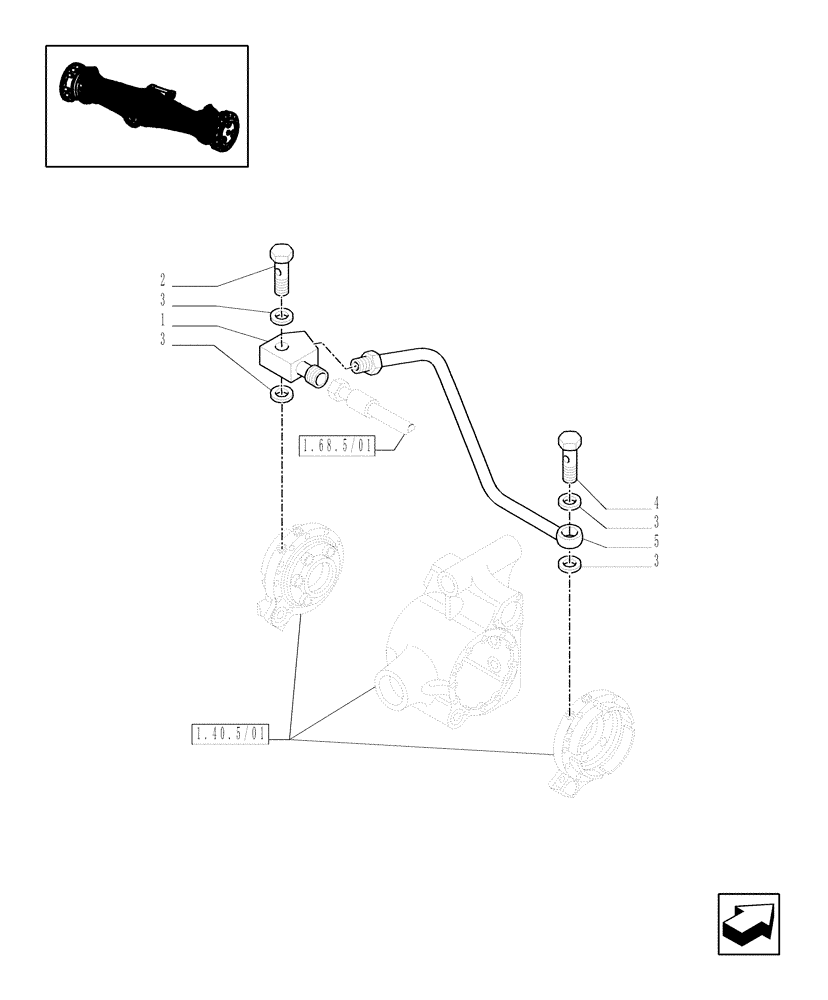

Схема запчастей Case IH JX1095N - (1.40.5/13) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/, 4WD W/FRONT BRAKES - PIPES (04) - FRONT AXLE & STEERING
1.68.5/01
1.40.5/01
5
3
1
3
2
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5190118

SWIVEL CONNECTION

1шт.

2

5190123

BANJO BOLT,Hex, M10 x 1 x 43.4mm

1шт.

3

10284460

WASHER,M10.2 x 16 x 1.5, Copper

4шт.

4

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

5

5190119

RIGID TUBE

1шт.
