(1.40.5/10[01]) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFEREN.GEARS AND SHAFT

Запчасти Case IH JX1095N (1.40.5/10[01]) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFEREN.GEARS AND SHAFT (04) - FRONT AXLE & STEERING

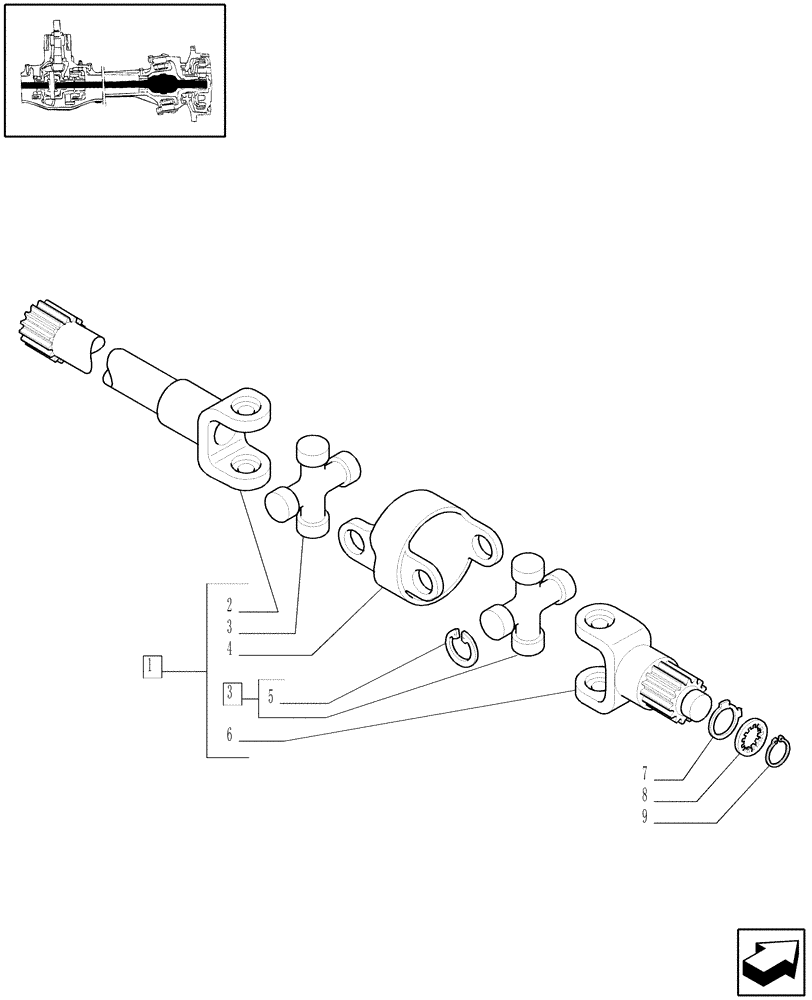

Схема запчастей Case IH JX1095N - (1.40.5/10[01]) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFEREN.GEARS AND SHAFT (04) - FRONT AXLE & STEERING
5
7
4
2
1
3
9
8
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87314114

HALF SHAFT

ASSY

2шт.

2

87314125

SUPPORT

Diff.Side

2шт.

3

87314131

SUPPORT

4шт.

4

87314116

BODY

2шт.

5

87314133

LOCKING RING

16шт.

6

87314132

YOKE

Wheel Side

2шт.

7

87313809

WASHER

2шт.

8

87313810

WASHER

2шт.

9

87313812

SNAP RING

D=40

2шт.
