(1.40.5/01) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD W/FRONT BRAKES - FRONT AXLE AND PARTS

Запчасти Case IH JX1095N (1.40.5/01) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD W/FRONT BRAKES - FRONT AXLE AND PARTS (04) - FRONT AXLE & STEERING

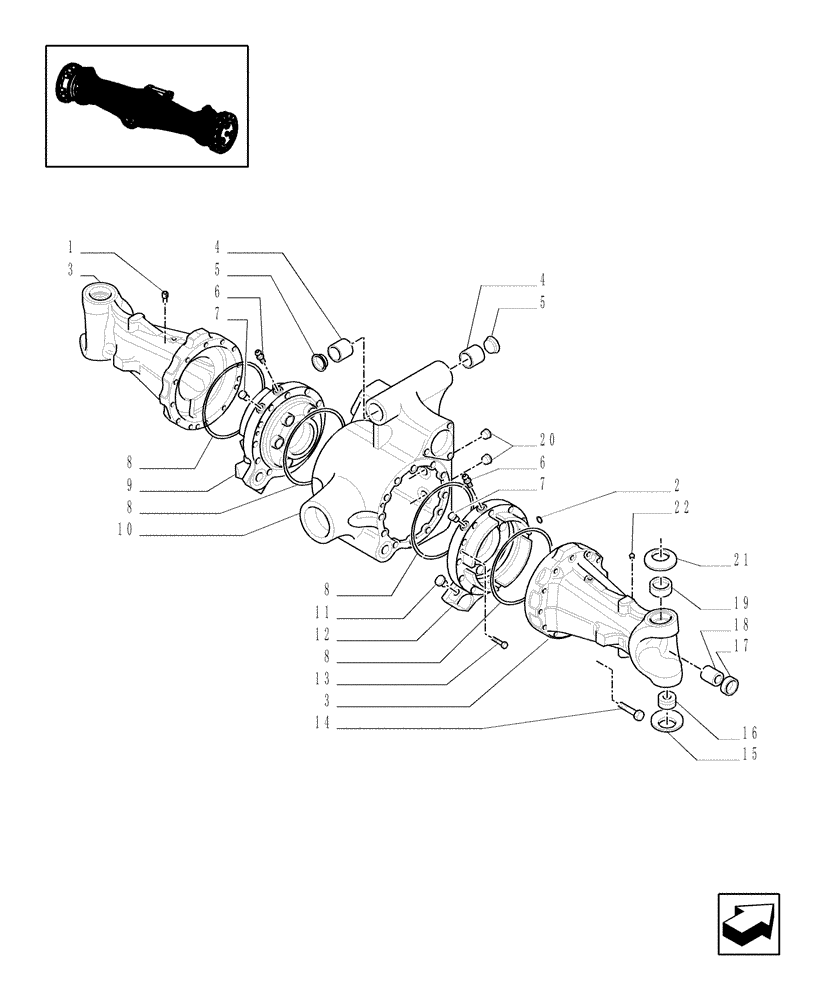

Схема запчастей Case IH JX1095N - (1.40.5/01) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD W/FRONT BRAKES - FRONT AXLE AND PARTS (04) - FRONT AXLE & STEERING
3
8
12
6
20
4
1
8
3
19
22
9
15
11
8
13
17
21
10
2
7
14
7
8
16
4
5
5
6
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194153

BREATHER,M10 x 1

1шт.

2

5194294

RUBBER RING

4шт.

3

87314104

TRACK ROD END ASSY

2шт.

4

9967669

BUSHING

2шт.

5

5194154

PLUG

2шт.

6

5194283

BREATHER,M10 x 1

M10x1

2шт.

7

5194284

PLUG

M10x1

2шт.

8

5194285

O-RING,2.5mm Thk x 183mm ID, 70 Duro

4шт.

9

5194286

CYLINDER

LH

1шт.

10

5194287

BODY

1шт.

11

5194181

PLUG

M14x1.5

1шт.

12

5194288

CYLINDER

RH

1шт.

13

5194289

BOLT

M8x30

4шт.

14

5194290

BOLT

M12x80

24шт.

15

5194164

BELLEVILLE WASHER,43mm ID x 61mm OD x 1.669mm Thk

2шт.

16

5194163

SPHERICAL BEARING

2шт.

17

5194291

SEALING RING

2шт.

18

5194292

BUSHING,35mm ID x 39.1mm OD x 35mm L

2шт.

19

5194159

BUSHING,35mm ID x 47mm OD x 15mm L

2шт.

20

5194156

PLUG

M24x1.5

2шт.

21

5194157

BELLEVILLE WASHER

2шт.

22

5194293

PLUG

M10x1

1шт.
