(1.40.5) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKE - BOX AND PIPES

Запчасти Case IH JX1095N (1.40.5) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKE - BOX AND PIPES (04) - FRONT AXLE & STEERING

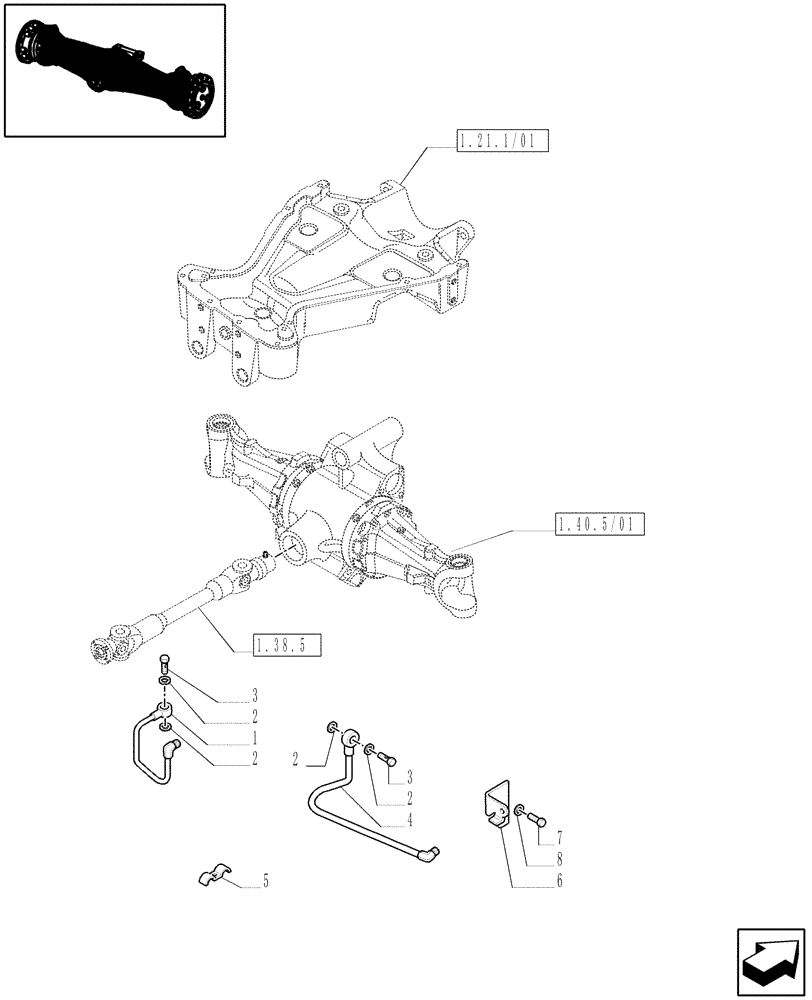

Схема запчастей Case IH JX1095N - (1.40.5) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKE - BOX AND PIPES (04) - FRONT AXLE & STEERING
2
2
3
1.38.5
1.21.1/01
5
8
7
1.40.5/01
4
3
2
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125598

RIGID TUBE

LH

1шт.

2

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

DIA=14.86x22.23

4шт.

3

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

4

47125600

RIGID TUBE

1шт.

5

4999554

CLAMP,2 Hoses

1шт.

6

47125602

BRACKET

1шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

8

12035670

LOCK WASHER

M6

1шт.
