(1.40.1/10) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT

Запчасти Case IH JX1095N (1.40.1/10) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING

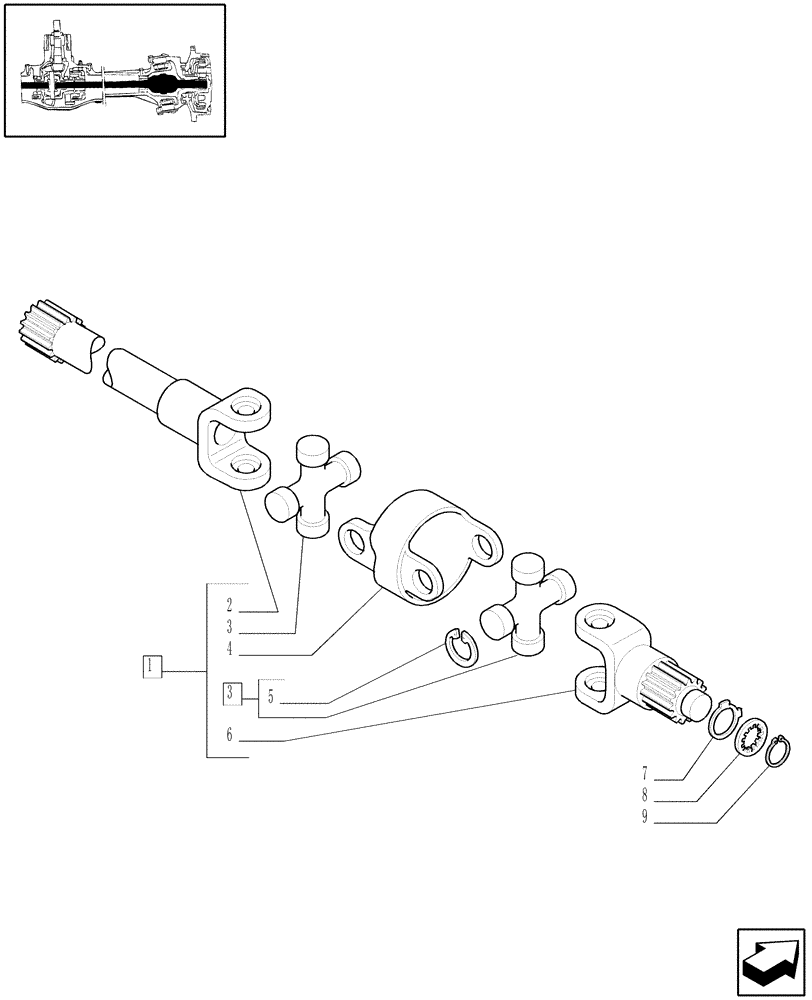

Схема запчастей Case IH JX1095N - (1.40.1/10) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING
7
8
9
3
6
2
5
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87313808

UNIVERSAL JOINT

ASSY

2шт.

2

5194196

AXLE-SHAFT, ARTICULA

Diff.Side

2шт.

3

5194198

SPIDER

4шт.

4

5194197

YOKE

2шт.

5

80278643

CIRCLIP

16шт.

6

5194361

AXLE-SHAFT, ARTICULA,Fork (Wheel Side)

Wheel Side

2шт.

7

87313809

WASHER

2шт.

8

87313810

WASHER

2шт.

9

87313812

SNAP RING

D=40

2шт.
