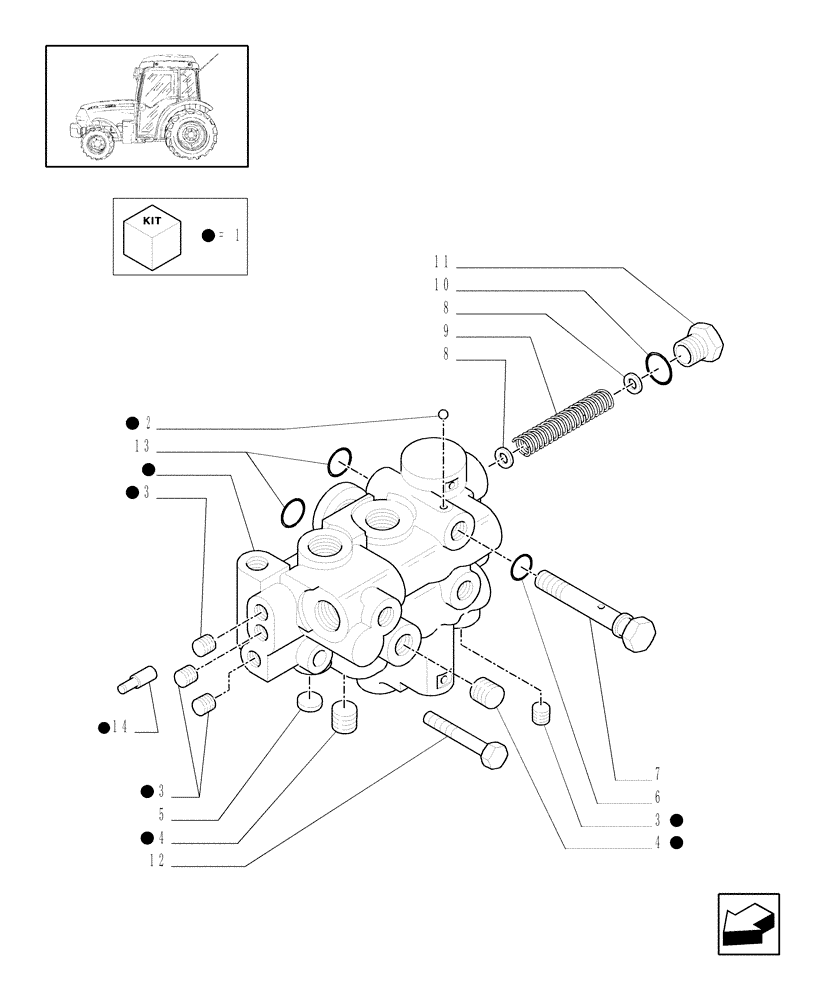

Запчасти Case IH JX1095N (1.33.2/01[02]) - (VAR.271) HI-LO FRICTION CLUTCH (2WD) - TRANSMISSION CONTROLS (04) - FRONT AXLE & STEERING

1

47137763

HYDRAULIC VALVE

Assy.

1шт.

2

20419150

BALL,3.17mm OD, Gr 100, CRS

1/8"

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

4

10269504

PLUG,M14 x 1.5

DIA=14

2шт.

5

14328501

PLUG,M16, Tapered

1шт.

6

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

7

5176224

BOLT,Hex, M25 x 1.25 x 107mm L

1шт.

8

13550101

WASHER

5x11

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5176204

PLUG,M18 x 1.5

2шт.

12

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

14

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.
