Запчасти Case IH JX1095N (1.33.2[01]) - IDLER CONTROLS (04) - FRONT AXLE & STEERING

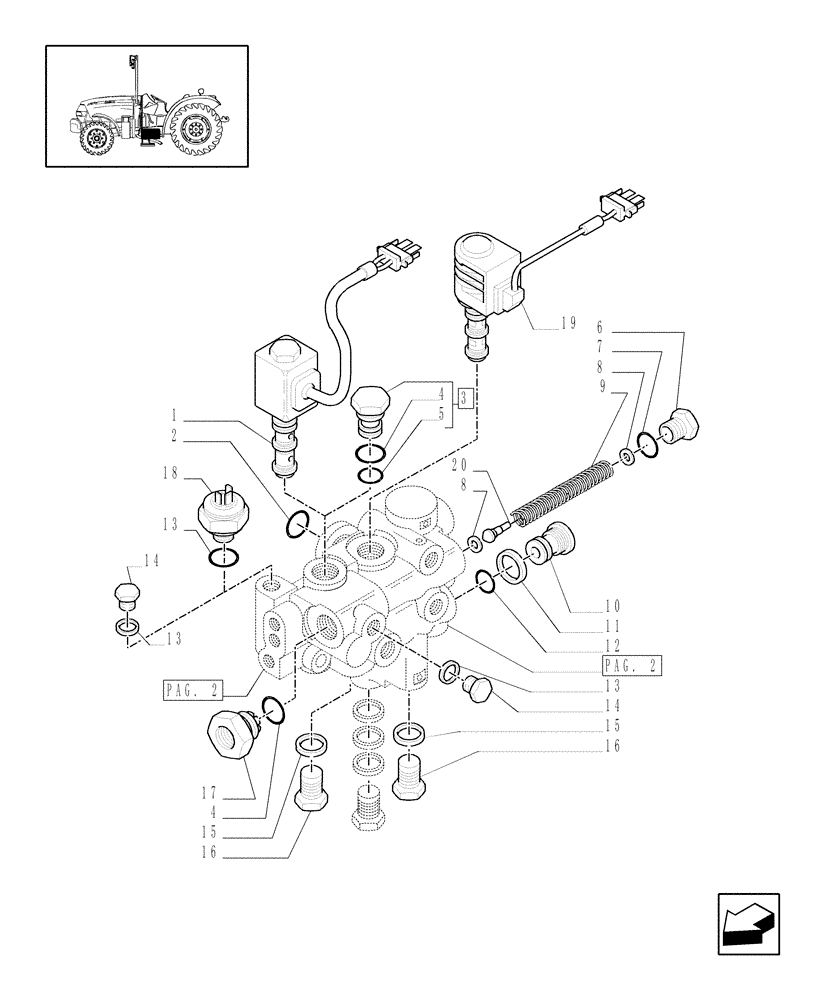

Схема запчастей Case IH JX1095N - (1.33.2[01]) - IDLER CONTROLS (04) - FRONT AXLE & STEERING
1
13
20
4
pag. 2
6
11
13
3
pag. 2
2
16
15
15
4
18
8
13
5
16
12
14
8
7
14
9
19
10
17

Артикул

Название

Примечание

Количество

1

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

2

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

3

5154967

PLUG,Hex R0.2

2WD, JX1095V

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(M14 ID x 1.78 Thk), 2WD, JX1095V

1шт.

6

5176204

PLUG,M18 x 1.5

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

13550101

WASHER

5x11

2шт.

9

5157119

SPRING,11.5mm x 127mm

DE=11.5, L=127

1шт.

9

5114402

SPRING,Compression, 11mm OD x 35.5mm L

DE=11, L=35.5

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26

1шт.

12

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

15

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

16

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

2шт.

17

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

18

87395493

PRESSURE SWITCH

Trans. Oil, 4WD

1шт.

19

5193928

HYDRAULIC VALVE

Diff. Lock, W/Diode

1шт.

20

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

Выбрано товаров: 21
