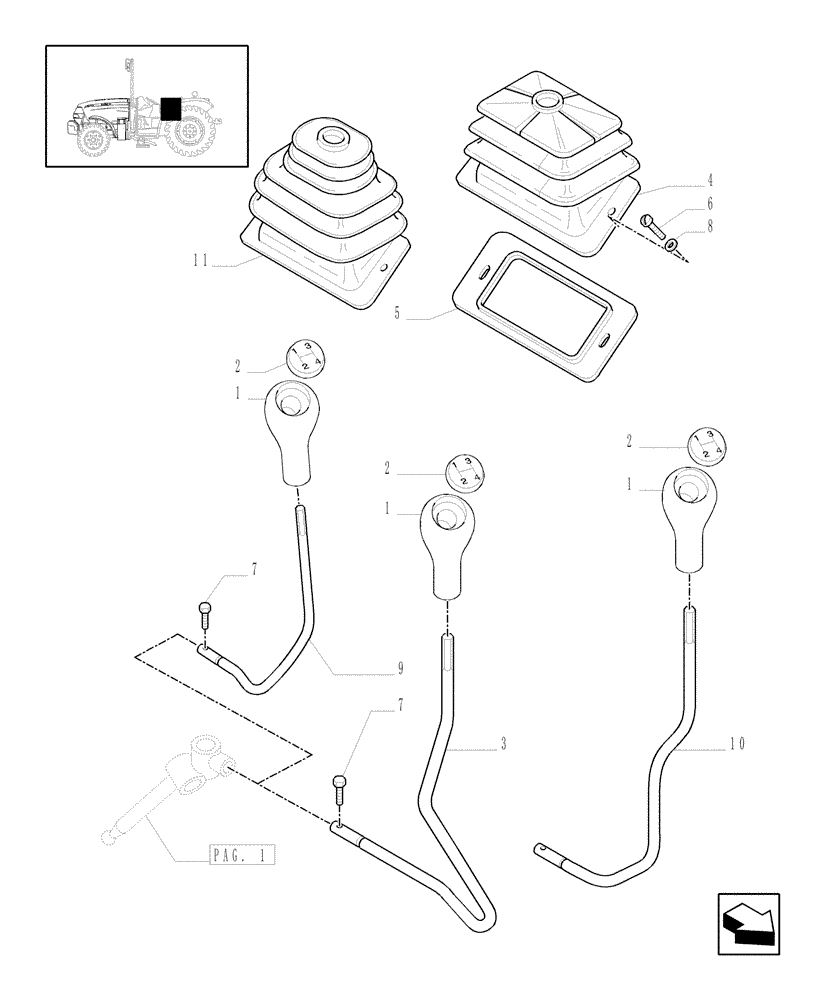

Запчасти Case IH JX1095N (1.29.1[02]) - TRANSMISSION EXTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

47056480

KNOB

1шт.

2

47056542

IDEOGRAM

, Serial Range: -C5251

1шт.

3

47129634

LEVER

Incl. Ref. 1, 2, 7, W/Cab, JX1095V

1шт.

3

47129629

LEVER

Incl. Ref. 1, 2, 7, W/Cab, JX1095N

1шт.

4

5188425

BELLOWS

, Serial Range: -HJC066472

1шт.

5

5188429

CAPPING

L=4

1шт.

5

5190510

FRAME

L=7

1шт.

6

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

47129598

LEVER

Incl. Ref. 1, 2, 7 L/Cab

1шт.

10

87376735

LEVER

Incl. Ref. 1, Start Serial: D5251

1шт.

11

87528777

BELLOWS

, Start Serial: HJC066473

1шт.
