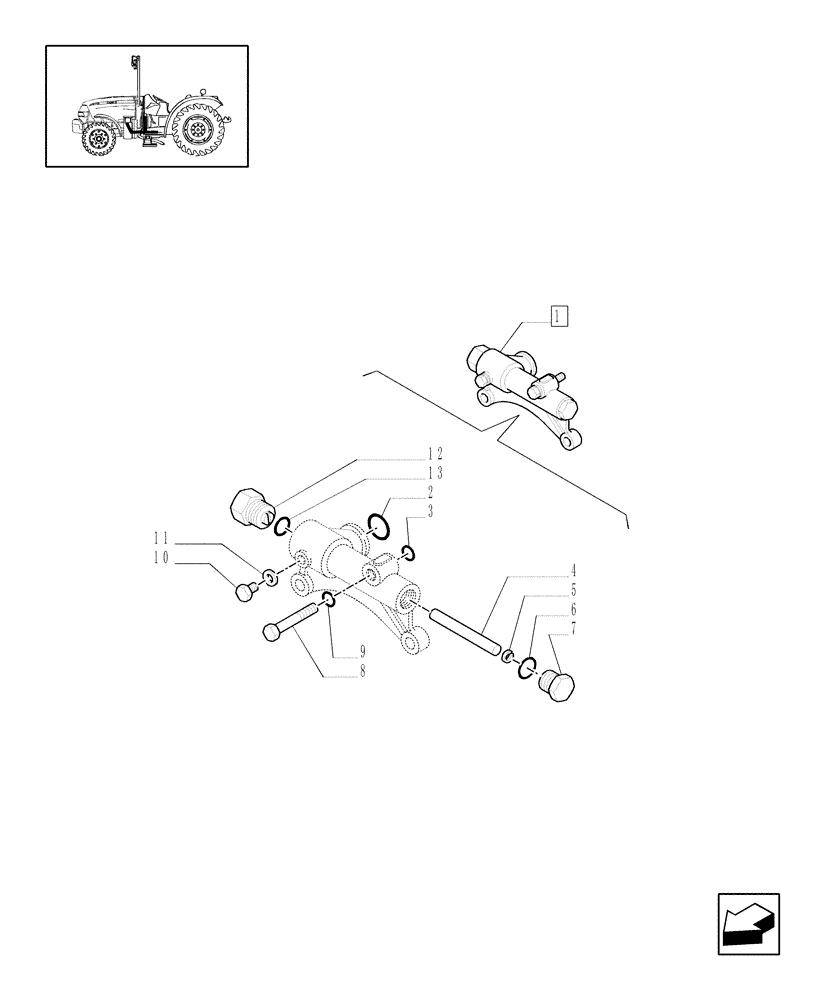

Запчасти Case IH JX1095N (1.28.8/ A) - 2WD GEAR LUBRICATION SYSTEM - BREAKDOWN (03) - TRANSMISSION

1

5186117

HYDRAULIC VALVE

1шт.

2

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

3

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

4

5157119

SPRING,11.5mm x 127mm

1шт.

5

13550101

WASHER

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5176204

PLUG,M18 x 1.5

1шт.

8

5188808

BOLT

1шт.

9

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

10

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

11

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

12

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
