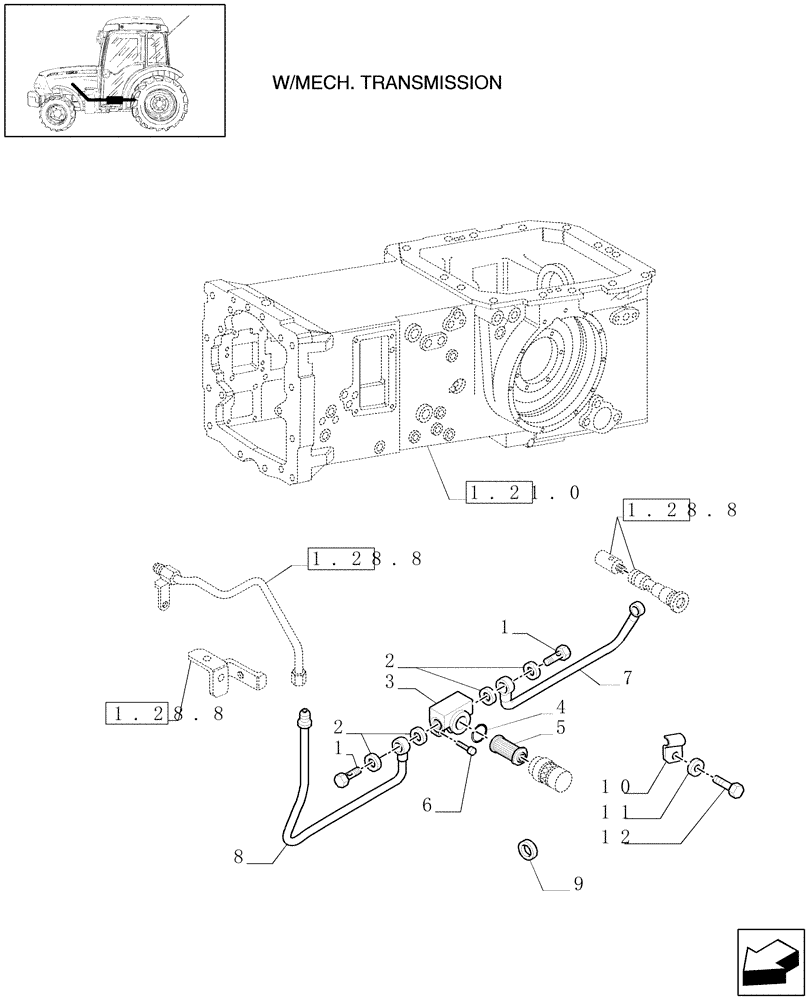

Запчасти Case IH JX1095N (1.28.8/03) - (VAR.832) ELECTRONIC LIFT (OPEN CENTER) - GEAR LUBRICATION SYSTEM, PIPES AND OIL FILTER (03) - TRANSMISSION

1

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

2шт.

2

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

3

47128207

FILTER ASSY

Incl. Ref. 4, 5

1шт.

4

5194880

O-RING KIT

Kit

1шт.

5

5194879

ELEMENT

1шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

5177834

RIGID TUBE

Rear

1шт.

8

5190925

RIGID TUBE

, Start Serial: D5756

1шт.

9

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

, Start Serial: D5756

1шт.

10

5178447

BRACKET

, Start Serial: D5756

1шт.

11

10516474

LOCK WASHER

, Start Serial: D5756

1шт.

12

10902011

SCREW

, Start Serial: D5756

1шт.
