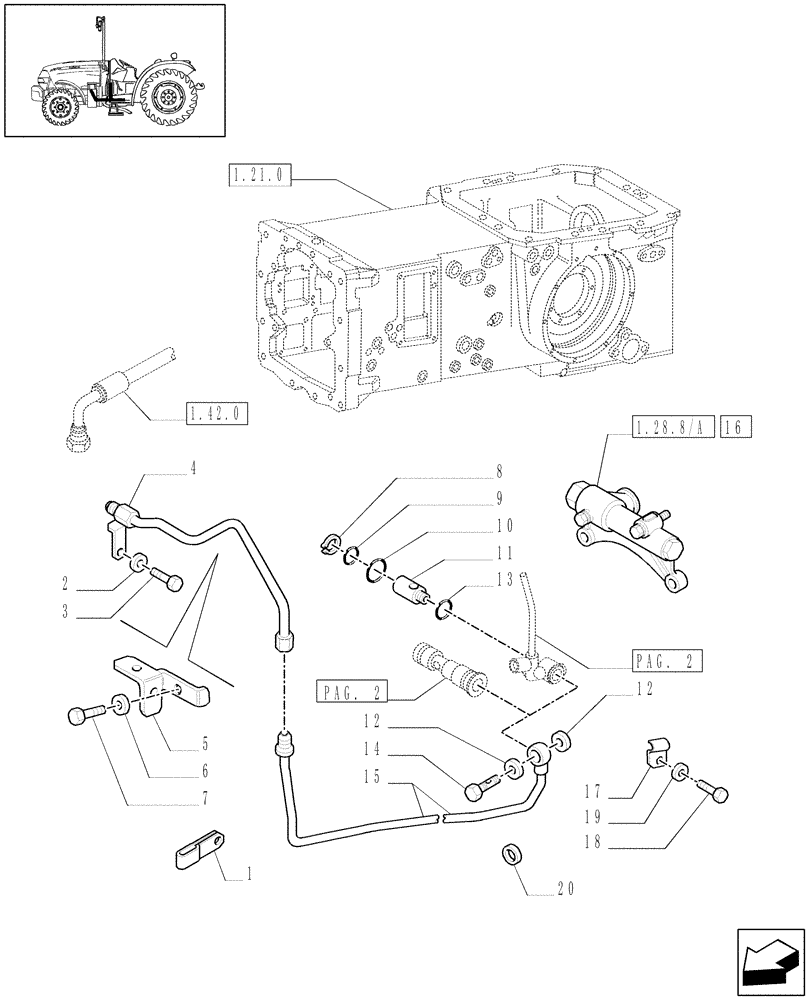

Запчасти Case IH JX1095N (1.28.8[01]) - GEAR LUBRICATION SYSTEM (03) - TRANSMISSION

1

5188267

COLLAR CLAMP,13mm ID x 20mm W

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

3

11112224

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

5190990

RIGID TUBE

Front

1шт.

5

5177828

BRACKET

1шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

JX1095N 2WD

1шт.

8

84021874

SNAP RING,M18, Ext

1шт.

9

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

10

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

11

5180935

VALVE

1шт.

12

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

13

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

1шт.

14

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M18x34

1шт.

15

5190923

RIGID TUBE

1шт.

JX1095N 2WD

1шт.

15

5190927

RIGID TUBE

1шт.

JX1095V, (JX1095N 4WD)

1шт.

16

5186117

HYDRAULIC VALVE

1шт.

17

5178447

BRACKET

1шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

19

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

, Serial Range: -C5756

1шт.

19

10516474

LOCK WASHER

, Start Serial: D5756

1шт.

20

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

, Start Serial: D5756

1шт.
