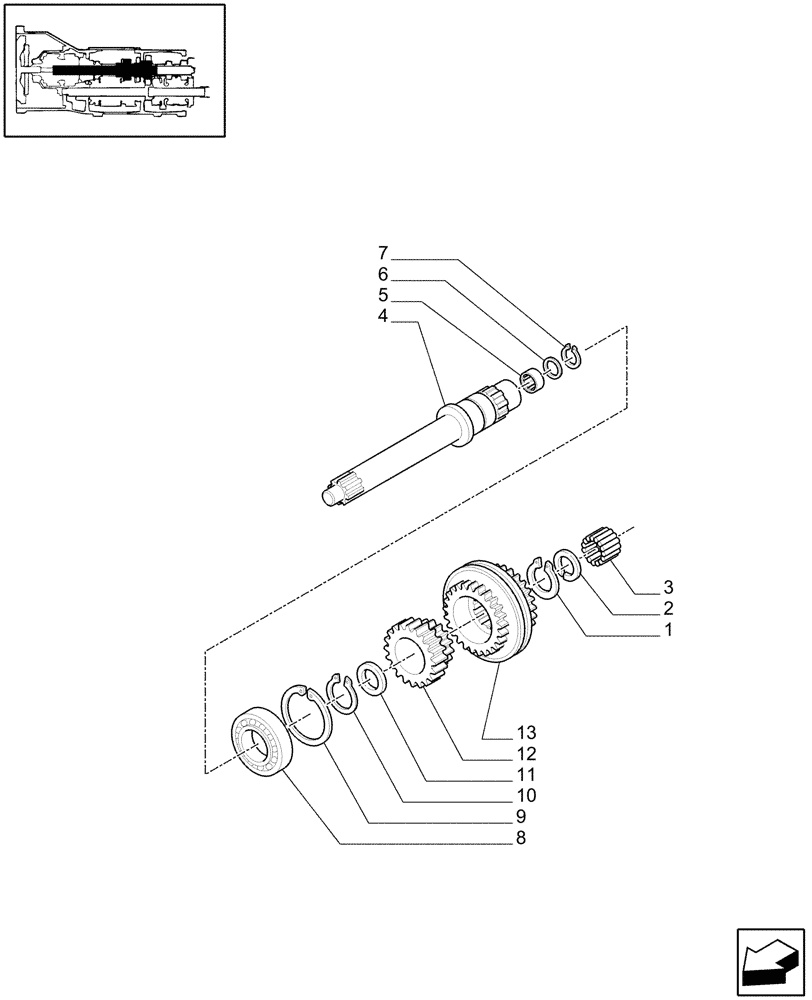

Запчасти Case IH JX1095N (1.28.1/05[01]) - (VAR.297) HI-LO NA - TRANSMISSION GEARS, CLUTCH SHAFT AND GEARS (03) - TRANSMISSION

1

11069276

SNAP RING,M48, Ext

1шт.

2

5160929

SNAP RING,55.3mm OD x 1.5mm Width

1шт.

3

5168192

ROLLER BEARING,45mm ID x 53mm OD x 20mm W

1шт.

4

5177472

MAIN SHAFT,344mm

Assy

1шт.

5

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

6

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

7

5180152

CIRCLIP,27.8mm ID

DIA=32

1шт.

8

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

9

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

DIA=90

1шт.

10

5168188

SNAP RING,1.5mm Thk, Ext

1шт.

11

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

12

5176906

GEAR,31T

1шт.

13

47125032

SYNCHRONIZER,82mm ID x 128mm OD x 42.9 mm L

Assy, DIA=82

1шт.
