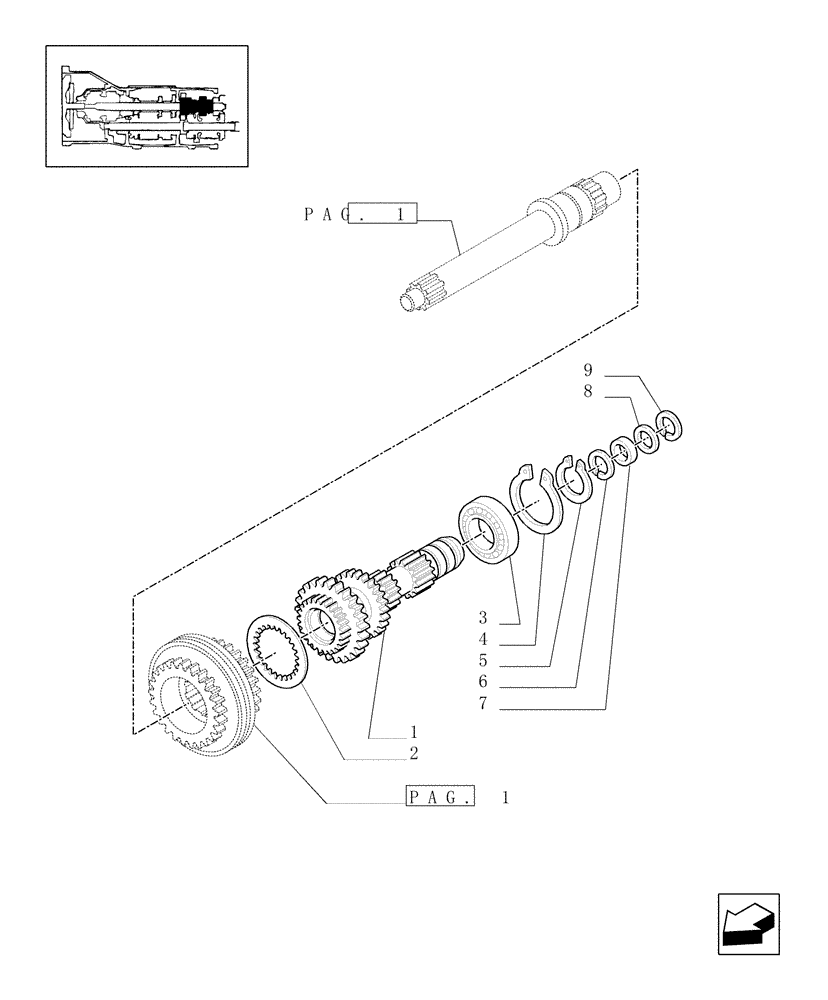

Запчасти Case IH JX1095N (1.28.1/04[02]) - (VAR.271) HI-LO - TRANSMISSION GEARS, DRIVE GEAR SHAFT (03) - TRANSMISSION

1

5176935

SHAFT,228mm

1шт.

2

5172078

SHIM,0.5mm Thk

1шт.

2

5172079

SHIM,1mm Thk

1шт.

2

5172080

SHIM,1.5mm Thk

1шт.

2

5172081

SHIM,2mm Thk

1шт.

2

5179357

SHIM,0.75mm Thk

1шт.

2

5179358

SHIM,1.25mm Thk

1шт.

2

5179359

SHIM,1.75mm Thk

1шт.

2

5179360

SHIM,2.25mm Thk

1шт.

3

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50x90x20

1шт.

4

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

DIA=90

1шт.

5

5138419

SNAP RING,M50

DIA=50

1шт.

6

5175983

SEALING RING,46mm ID

SEALRING

2шт.

7

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

8

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

9

5180152

CIRCLIP,27.8mm ID

1шт.
