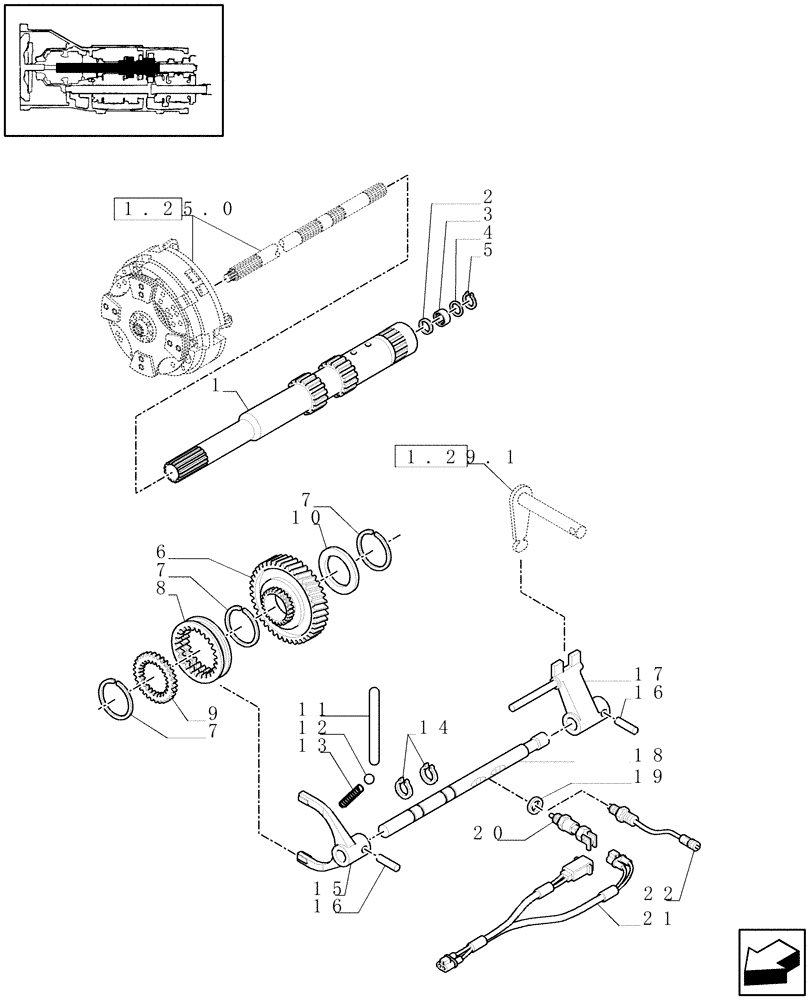

Запчасти Case IH JX1095N (1.28.1/01) - (VAR.111/1) CREEPER TRANSMISSION 28X16 (30KM/H) - CLUTCH SHAFT (03) - TRANSMISSION

1

5177461

CONTROL SHAFT

1шт.

2

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

25x32x16

1шт.

5

5180152

CIRCLIP,27.8mm ID

DIA=32

1шт.

6

5172890

GEAR,55T

1шт.

7

5168188

SNAP RING,1.5mm Thk, Ext

3шт.

8

5173937

SLEEVE,68mm ID x 75mm OD x 21mm L

1шт.

9

5172883

GEAR,50T Internal / 75T External

1шт.

10

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

11

5173942

PAWL,8.5mm OD x 95.5mm L

1шт.

12

20063390

BALL,8.73mm OD

D = 11/32"

1шт.

13

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

14

13397776

SNAP RING,M16, Int

2шт.

15

5173116

YOKE,16mm Hole Dia

1шт.

16

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

17

5178232

DOG

1шт.

18

47130804

ROD,15.5mm OD x 352mm L

1шт.

19

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14x20

1шт.

20

47132956

SENSOR

, Serial Range: -C5602

1шт.

21

5189719

ELECTRIC CABLE

1шт.

22

87598056

SWITCH

Yellow, Start Serial: D5602

1шт.
