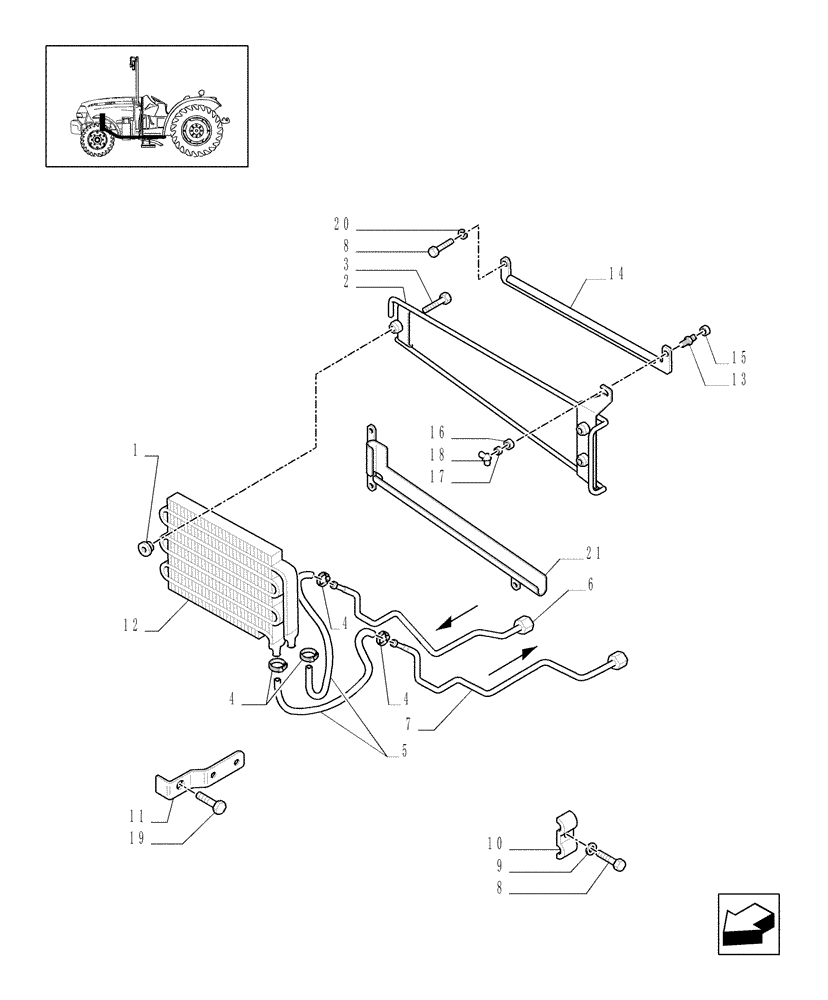

Запчасти Case IH JX1095N (1.27.7/01) - (VAR.297) HI-LO NA - HEAT EXCHANGER, RADIATOR AND FASTENING FRAME (03) - TRANSMISSION

1

5175390

PAD

3шт.

2

47135516

FRAME

1шт.

3

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

3шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

DIA=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

6

47136301

RIGID TUBE

Delivery

1шт.

7

47136299

RIGID TUBE

Return

1шт.

8

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

8

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

10

5177880

CLAMP,14mm ID

1шт.

11

87303685

BRACKET

JX1095V

1шт.

12

83945933

OIL COOLER

Assy.

1шт.

13

5174191

SCREW

1шт.

14

5176134

GUIDE

2шт.

15

12598374

LOCK WASHER

DIA=8

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

10102004

WING NUT

M8

1шт.

19

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

JX1095V

1шт.

20

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

21

47135518

BRACKET

1шт.
