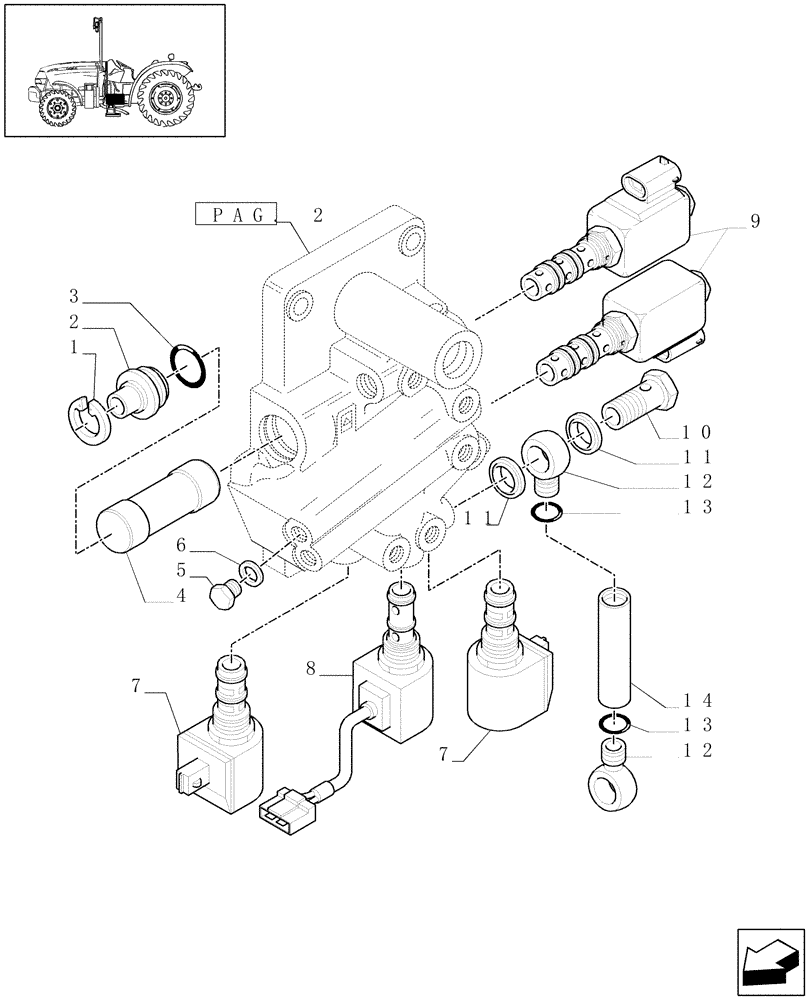

Запчасти Case IH JX1095N (1.27.3[01]) - (VAR.271) HI-LO - CLUTCH ENGAGEMENT, SOLENOID VALVES (03) - TRANSMISSION

1

80301644

CIRCLIP

DIA=30, 4WD

1шт.

2

5176167

PLUG,M10 x 1

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

47126471

PISTON

1шт.

5

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

6

10260960

SEALING WASHER,M10.2 x 14 x 1.5

2шт.

7

5168052

SOLENOID VALVE

Solenoid W/Diode

2шт.

8

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

9

84148281

ELECTRO-VALVE

Solenoid, Proportional Pressure

2шт.

9

84148281R

REMAN-HYD VALVE

Remanufactured Electro-Valve

2шт.

9

84148281C

CORE-VALVE HYD

Return Number

2шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2WD

1шт.

10

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M18x34

1шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

6шт.

12

5173682

BANJO BOLT,M9 x 30mm

2шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

14

5173681

RIGID TUBE

1шт.
