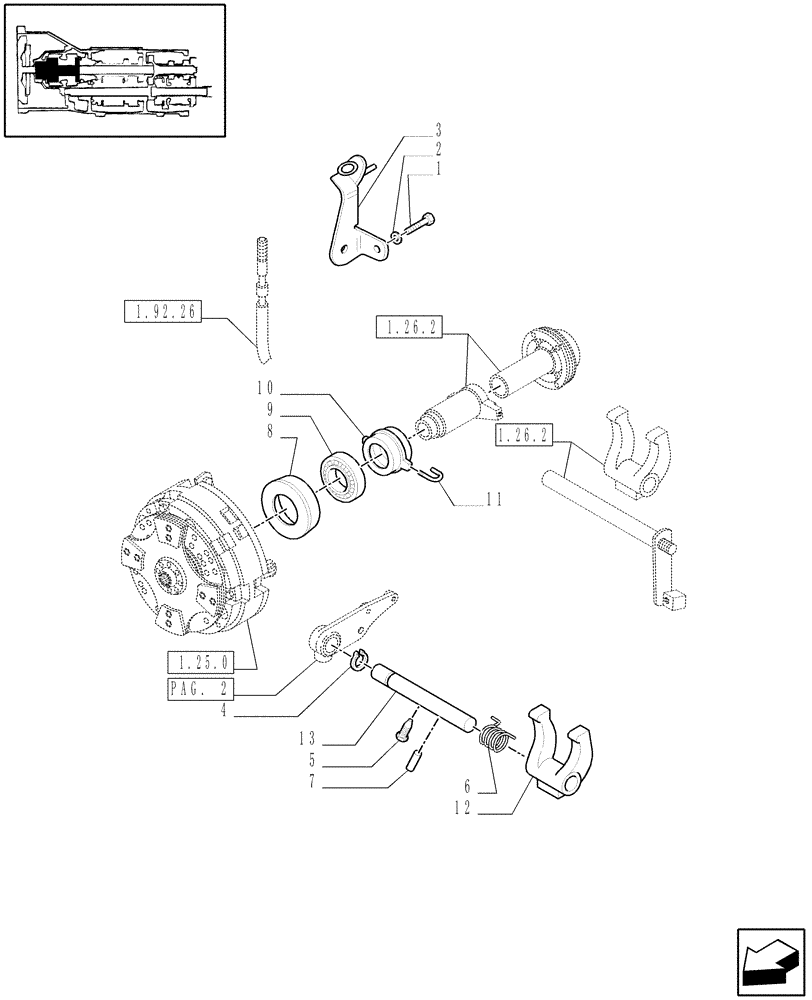

Запчасти Case IH JX1095N (1.26.5[01]) - PTO ENGAGEMENT CLUTCH (03) - TRANSMISSION

1

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

2

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

3

47125319

BRACKET

1шт.

4

11067276

SNAP RING,M24, Ext

1шт.

5

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16x32

2шт.

6

5189889

SPRING,38mm OD

1шт.

7

14610370

LOCK PIN,M10 x 50, Slotted

1шт.

8

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

9

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

75x115x20

1шт.

10

5191807

BEARING CARRIER,Clutch

1шт.

11

44011615

SPRING,15mm, Free Length

2шт.

12

5172487

YOKE,M16 x 1.5

1шт.

13

5183674

SHAFT,22.9mm ID x 24mm OD x 256.5mm L

1шт.
