Запчасти Case IH JX1075N (1.25.0/01) - (VAR.271) HI-LO - CLUTCH (03) - TRANSMISSION

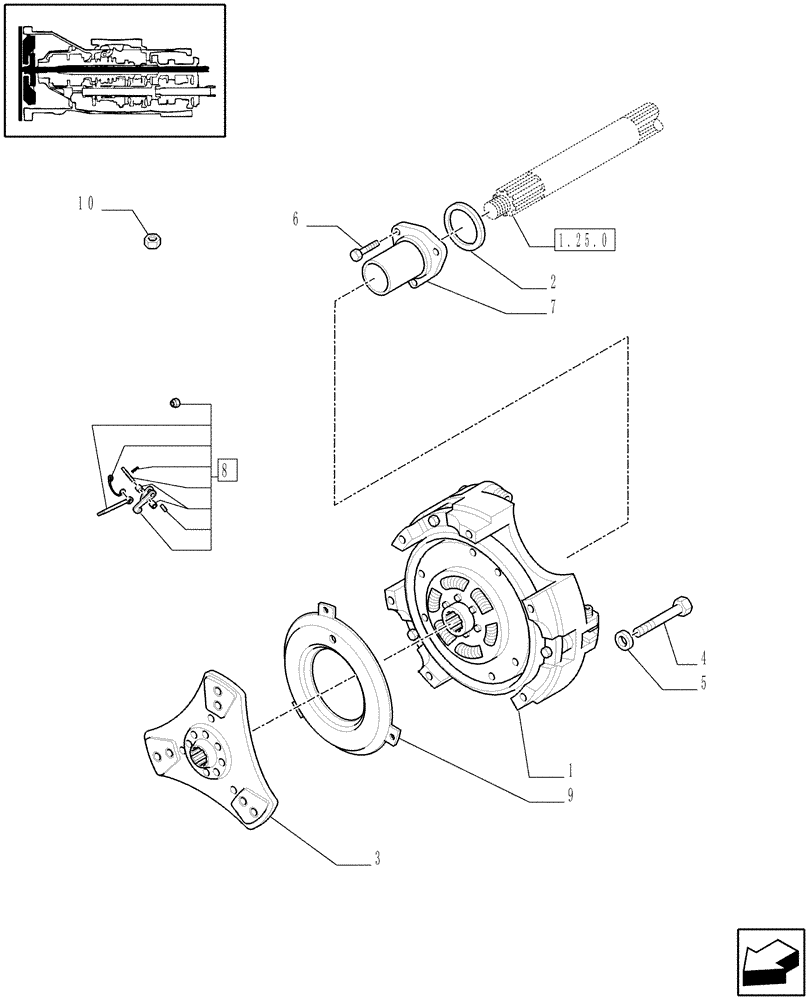

Схема запчастей Case IH JX1075N - (1.25.0/01) - (VAR.271) HI-LO - CLUTCH (03) - TRANSMISSION
1
10
5
6
2
7
8
9
3
1.25.0
4

Артикул

Название

Примечание

Количество

1

5196770

CLUTCH MECHANISM

Incl.8.9, Serial Range: -C4941

1шт.

JX1060V,JX1070N,JX1070V

1шт.

1

47134886R

REMAN-CLUTCH ASSY

Reman for New PN 5196770

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

47123372

CLUTCH

Incl.8.9, Serial Range: -C4941

1шт.

JX1075N,JX1075V

1шт.

1

47134886R

REMAN-CLUTCH ASSY

Reman for New PN 47123372

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

47134884

CLUTCH

Incl.8.9, Start Serial: D4941

1шт.

JX1060V

1шт.

1

47134886R

REMAN-CLUTCH ASSY

Reman for New PN 47134884

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

1

47134886

CLUTCH,327mm OD

Incl.8.9, Start Serial: D4941

1шт.

JX1070N,JX1070V,JX1075N,JX1075V

1шт.

1

47134886R

REMAN-CLUTCH ASSY

JX1070N,JX1075N, Both ASN D4941

1шт.

1

47134886C

CORE-CLUTCH ASSEMBLY

Core-Clutch Assy Return Part Number, Start Serial: D4941

1шт.

JX1070N, JX1075N

1шт.

2

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

47134882

CLUTCH PLATE,280mm OD

PTO

1шт.

3

47134882R

REMAN-CLUTCH PLATE

JX1070N, JX1075N

1шт.

3

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

7

5177143

COVER

1шт.

8

5196791

KIT

, Serial Range: -C4941

1шт.

8

47137136

KIT

, Start Serial: D4941

1шт.

9

5196792

PRESSURE RING

1шт.

10

10790921

THIN NUT,Thin, M16 x 1.5, Cl 05

LH

2шт.

Выбрано товаров: 29
