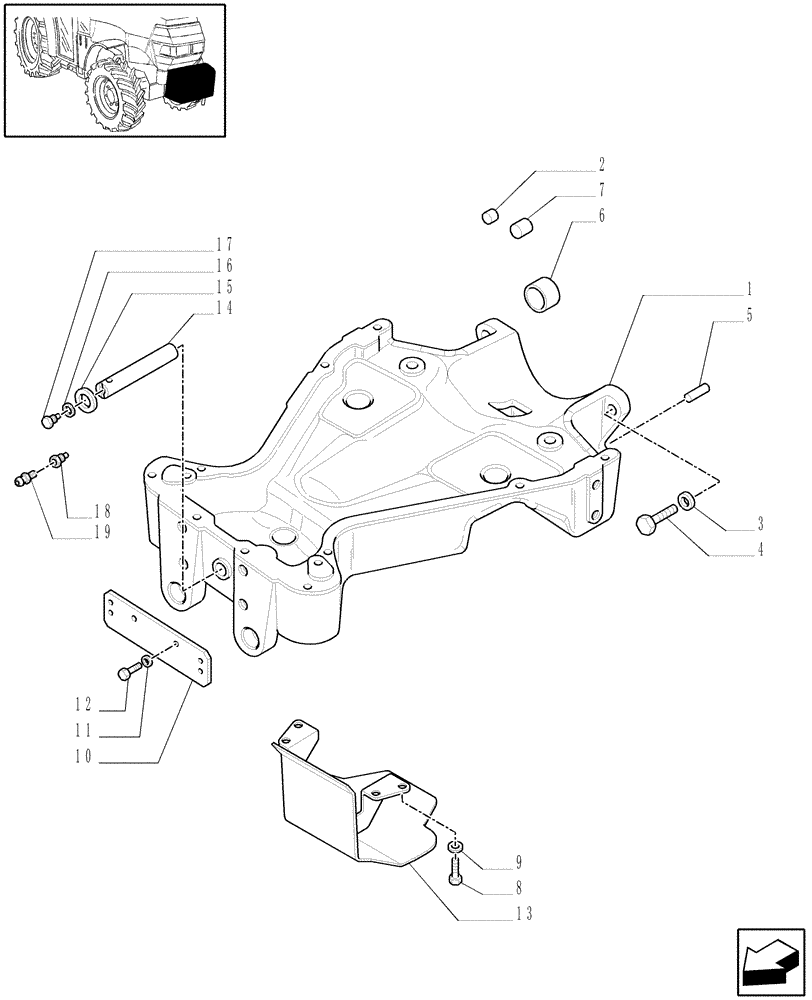

Запчасти Case IH JX1075N (1.21.1/02[01]) - 4WD FRONT AXLE SUPPORT (03) - TRANSMISSION

1

47135781

SUPPORT

1шт.

2

5111628

PLUG

DIA=10.5

2шт.

2

5113598

PLUG

DIA=9

4шт.

3

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

4

15984534

BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

4

15985031

BOLT,Hex, M18 x 1.5 x 90mm, Cl 10.9

2шт.

5

5190494

PIN,6mm OD x 35mm L

6x35

10шт.

5

5190495

PIN

10x60

1шт.

6

5130081

BUSHING,19mm ID x 25mm OD x 24mm L

2шт.

7

5171790

PLUG,18mm, Black

18x12x24

10шт.

8

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

10

5181782

PLATE

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

13

5189197

BRACKET

1шт.

14

5186314

PIN

315 MM., Serial Range: -C5894

1шт.

14

87699593

PIN,40mm OD x 315mm L

, Start Serial: D5894

1шт.

15

5170057

RING,40.2mm ID x 65mm OD x 5mm Thk

2шт.

16

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

17

5194149

SCREW

M12, Serial Range: -C5894

1шт.

18

87699595

SCREW,M12 x 1.75 x 1.75mm

M12, Start Serial: D5894

1шт.

19

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

, Start Serial: D5894

1шт.
