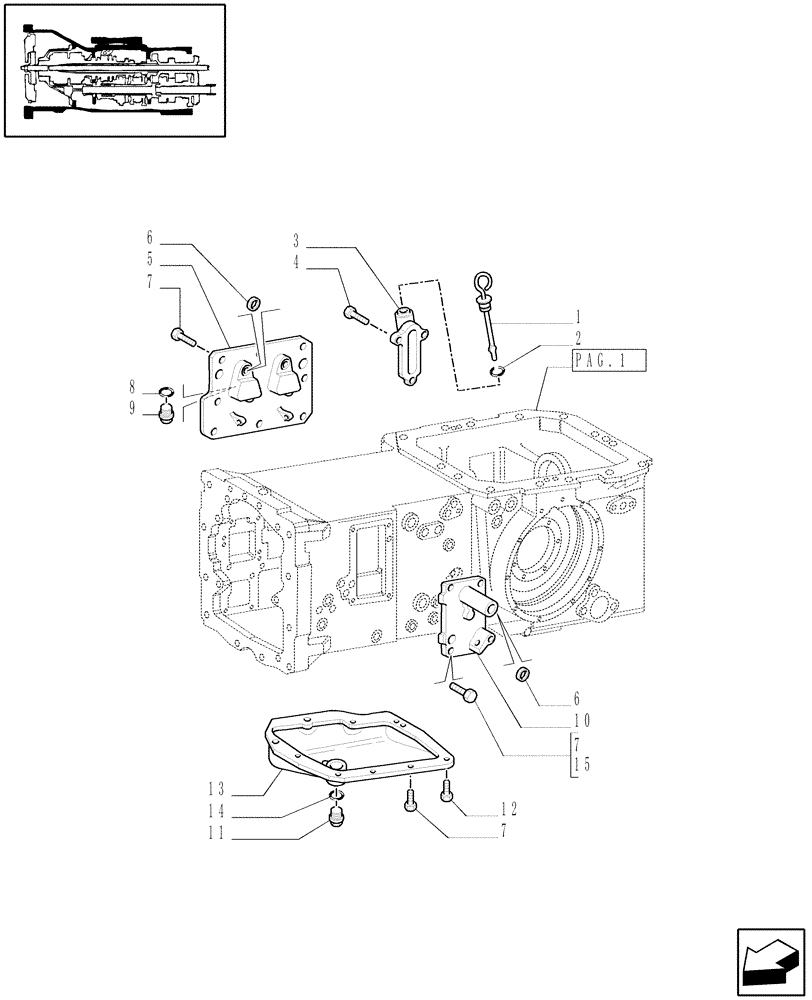

Запчасти Case IH JX1075N (1.21.0[02]) - TRANSMISSION ASSY. (03) - TRANSMISSION

1

5182954

DIPSTICK,165mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

5177062

NECK FILLER

1шт.

4

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

, Serial Range: -C5896

3шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5896

3шт.

5

5183336

COVER

, Serial Range: -HJC059179

1шт.

5

87346021

COVER

, Serial Range: HJC059180-C5780

1шт.

5

87639193

COVER

, Start Serial: D5780

1шт.

6

5168241

SEAL,22mm ID x 32mm OD x 9mm Thk

3шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2WD

18шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4WD

11шт.

8

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

4шт.

9

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

4шт.

10

5178512

COVER

1шт.

11

5151213

PLUG,M35 x 1.5

M35x25 (2WD)

1шт.

12

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2WD

1шт.

13

5172917

COVER

(2WD)

1шт.

14

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

15

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

1шт.
