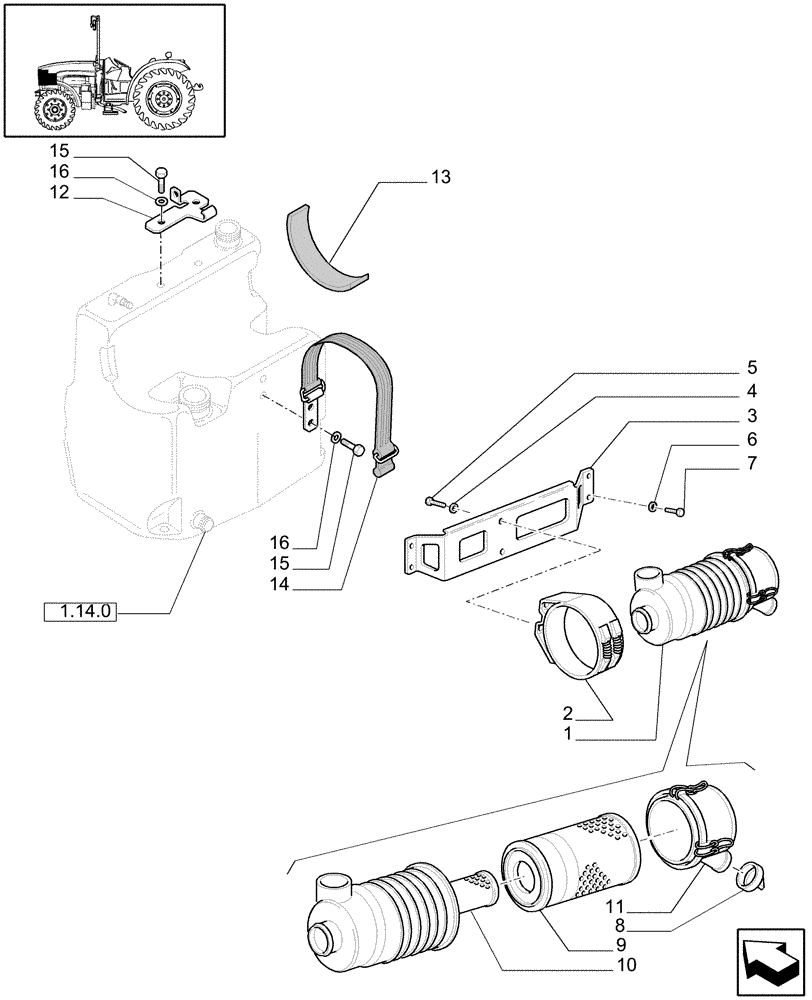

Запчасти Case IH JX1075N (1.19.1) - DRY AIR CLEANER (02) - ENGINE EQUIPMENT

1

47135970

AIR CLEANER

Assy

1шт.

2

5186240

BRACKET

, Serial Range: -HJB017660

1шт.

3

5174680

CROSSRAIL

, Serial Range: -HJB017660

1шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

, Serial Range: -HJB017660

2шт.

5

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

, Serial Range: -HJB017660

2шт.

6

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

4шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

8

47135967

PROTECTION CAP

1шт.

9

47135973

AIR FILTER

Main

1шт.

Valid with JX1060V, JX1070N Models

1шт.

10

47135976

AIR FILTER

Safety

1шт.

Valid with JX1060V, JX1070N Models

1шт.

11

47135966

COVER

1шт.

12

5178714

BRACKET

, Start Serial: HJB017661

1шт.

13

5176860

SOFT TRIM

, Start Serial: HJB017661

1шт.

14

5194993

SECURING STRAP,318mm L x 30mm W

, Start Serial: HJB017661

1шт.

15

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

, Start Serial: HJB017661

4шт.

16

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

, Start Serial: HJB017661

4шт.
