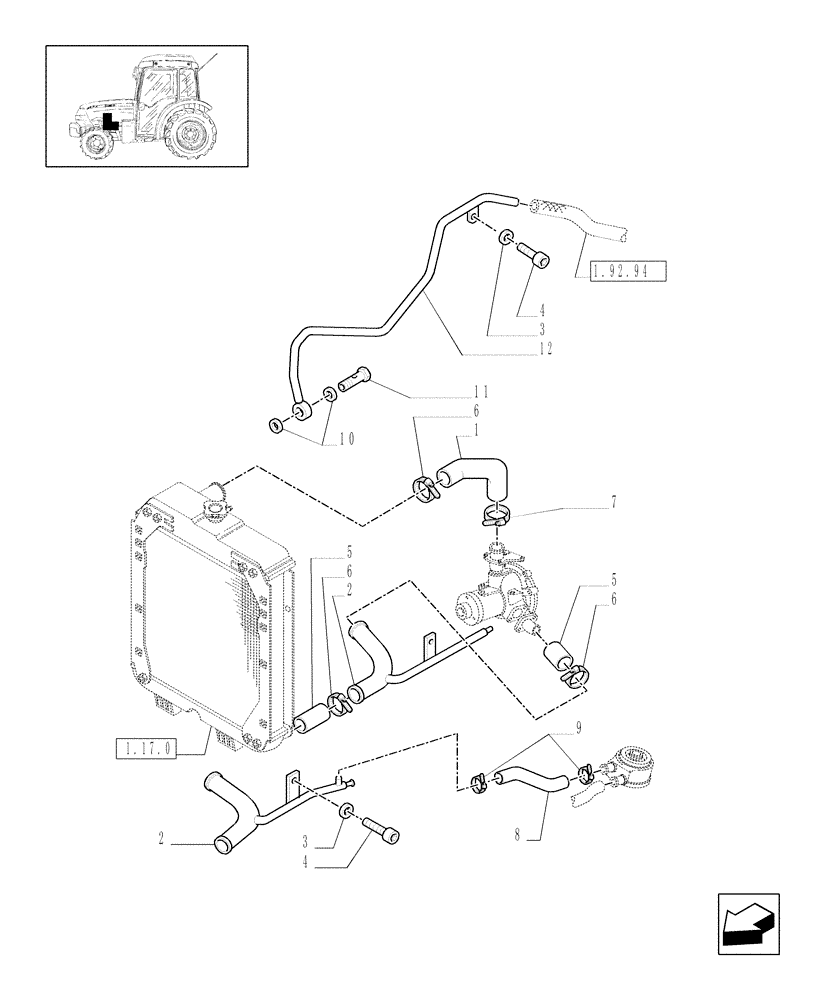

Запчасти Case IH JX1075N (1.17.2/01) - RADIATOR HOSES - W/CAB (02) - ENGINE EQUIPMENT

1

5176675

HOSE,38.00 mm ID, 45.00 mm ID x 160.00 mm

1шт.

2

5188615

RIGID TUBE

JX1060V

1шт.

2

5188581

RIGID TUBE

JX1070V, JX1075V, JX1070N, JX1075N

1шт.

3

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

4

5189310

BOLT

M12x20

1шт.

5

596152

RADIATOR HOSE,37.00 mm ID x 80.00 mm

2шт.

6

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

DIA=32-50

5шт.

7

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

DIA=50-70

1шт.

8

5154826

HOSE,16.00 mm ID

JX1070V, JX1075V, JX1070N, JX1075N

1шт.

9

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

DIA=20-30, JX1070V, JX1075V, JX1070N, JX1075N

2шт.

10

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26

2шт.

11

10182614

BANJO BOLT,M20 x 1.5 x 36mm

1шт.

12

5189264

RIGID TUBE

1шт.
