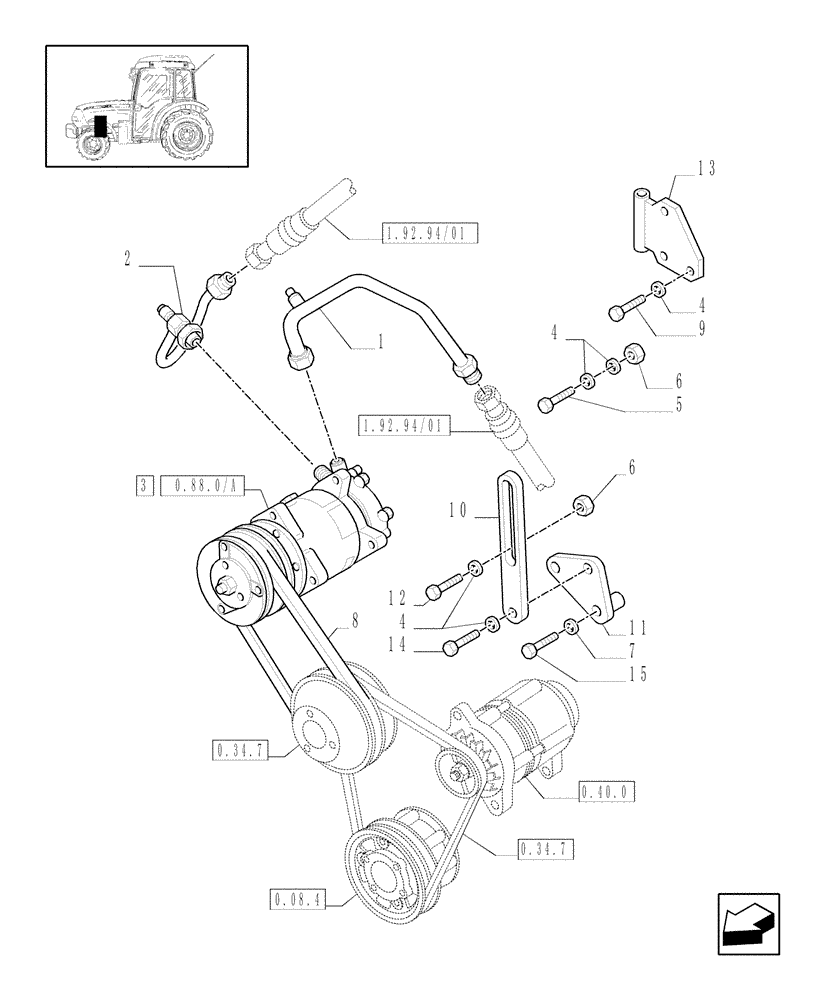

Запчасти Case IH JX1075N (0.88.0) - (VAR.608) AIR CONDITIONING/CONDITIONER -BOOSTER, PIPES AND RELEVANT PARTS (01) - ENGINE

1

5188658

RIGID TUBE

Suction

1шт.

2

5188659

HYD CONNECTOR

Discharge

1шт.

3

5176185

AIR COMPRESSOR

Assy

1шт.

5176185R

REMAN-COMPRESSOR

JX1070N, JX1075N BOTH (5/04-)

1шт.

5176185C

CORE-COMPRESSOR

Return Number

1шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

7шт.

5

15972121

SCREW,Hex, M10 x 1.25 x 115mm, Cl 8.8

1шт.

6

12164714

NUT,M10 x 1.25, Cl 8

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

87324567

BELT,13.33 mm W x 1450.00 mm L, 5 Ribs

1шт.

9

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

10

5177011

BRACKET

1шт.

11

5186260

BELT TENSIONER

1шт.

12

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

5186258

SUPPORT

1шт.

14

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

15

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.
