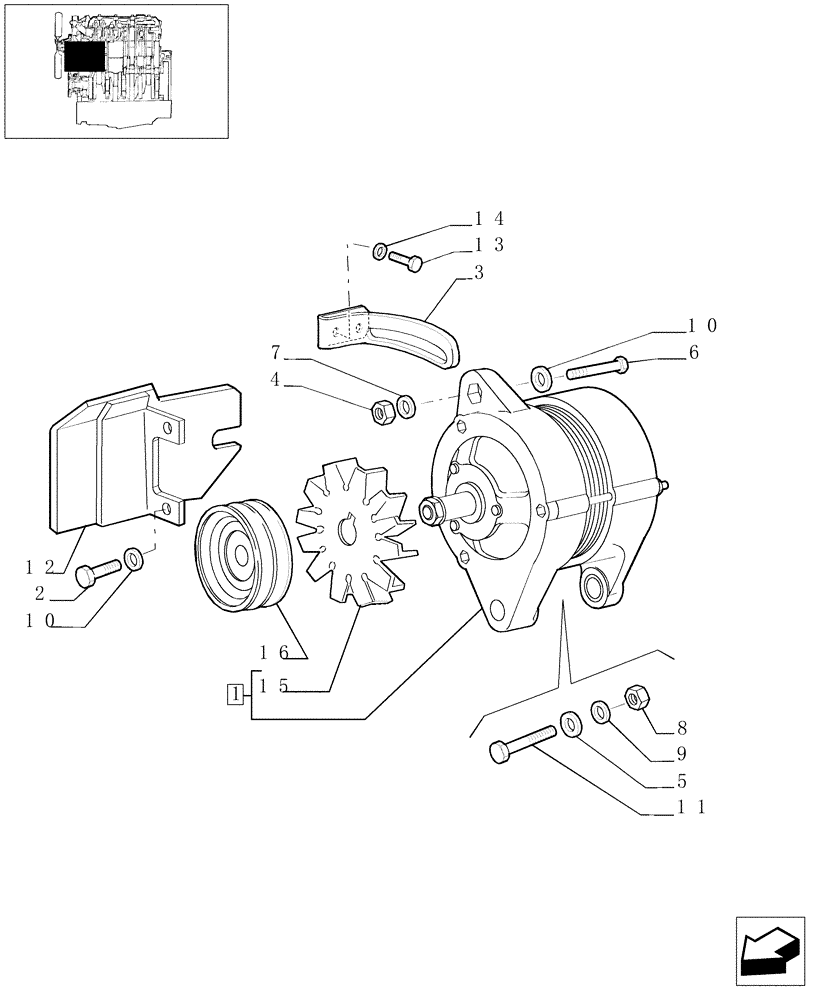

Запчасти Case IH JX1075N (0.40.0) - ALTERNATOR MOUNTING (01) - ENGINE

1

500322763

ALTERNATOR

45A

1шт.

1

500322763R

REMAN-ALTERNATOR

Reman for New PN 500322763

1шт.

1

500322763C

CORE-ALTERNATOR

Return Number

1шт.

1

500322764

ALTERNATOR,12V, 65A

65A

1шт.

1

500322764GV

ALTERNATOR

Value

1шт.

1

500322764R

REMAN-ALTERNATOR

Reman For New PN 500322764

1шт.

1

500322764C

CORE-ALTERNATOR

Return Number

1шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

99440819

BELT TENSIONER

1шт.

4

12164721

NUT,M10 x 1.25, Cl 10

1шт.

5

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

6

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

7

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

12X24

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

11

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

12

500335643

GUARD

1шт.

13

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

15

87750659

FAN

1шт.

16

500343731

PULLEY

1шт.
