(1.98.0[01]) - DECALS

Запчасти Case IH JX1075N (1.98.0[01]) - DECALS (13) - DECALS

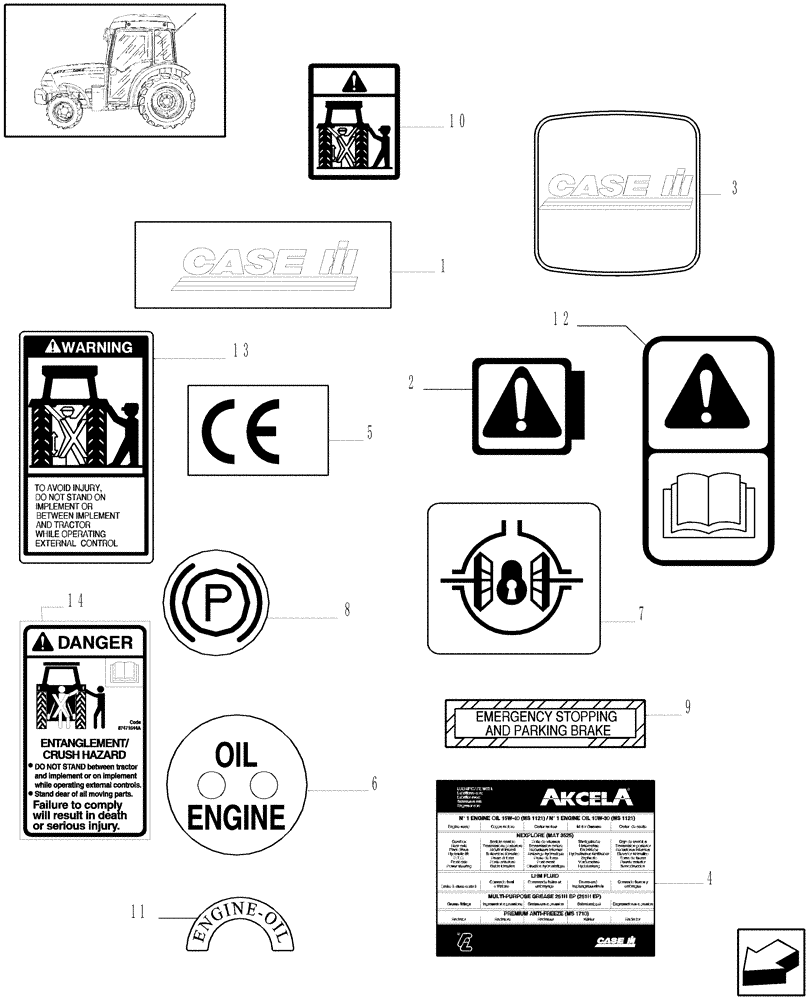

Схема запчастей Case IH JX1075N - (1.98.0[01]) - DECALS (13) - DECALS
5
1
12
9
7
1
8
1
2
10
6
13
3
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82037434

DECAL

Branding

4шт.

2

83946774

DECAL

WARNING

1шт.

3

87802961

MAKERS BADGE

Front

1шт.

4

47134674

DECAL

Lubricants

1шт.

5

5176815

DECAL

CE, Serial Range: -C5716

1шт.

6

5176078

DECAL

Engine Oil

1шт.

7

5188358

DECAL

Differential Lock, 2WD, L/CAB

1шт.

8

82016114

DECAL

Parking Brake

1шт.

9

5163560

DECAL

Emergency Brake, VAR.007, JX1095N

1шт.

10

47134222

DECAL

WARNING, VAR.821-832

2шт.

W/ISO Equipments

1шт.

11

47137032

DECAL

Engine Oil

1шт.

12

87326817

DECAL

Operator Warning Instructions, Start Serial: HJC047270

1шт.

13

87327082

DECAL

WARNING, External Controls, VAR. 821-832, Serial Range: -C5952

2шт.

W/NA Equipments

1шт.

14

87471644

DECAL

, Start Serial: D5952

2шт.
