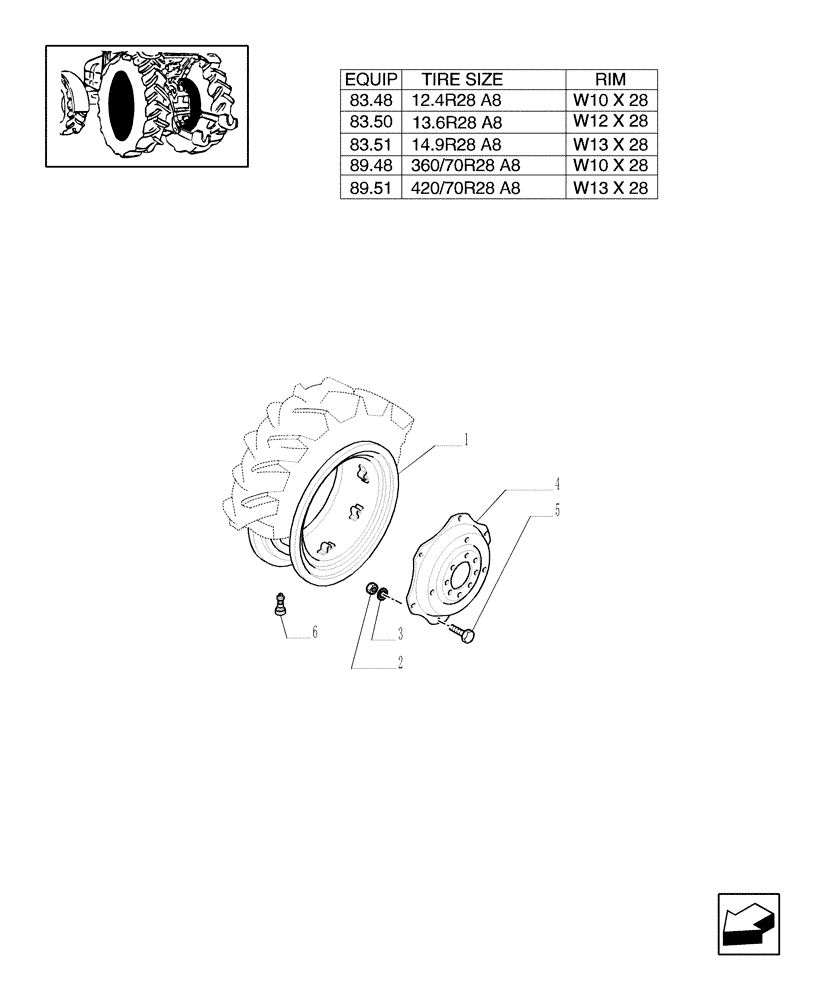

Запчасти Case IH JX1075N (83.00[03]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47136490

RIM,716mm Dia x 254mm W, 6 Bolts, CASE Silver

W10x28

2шт.

1

47136497

RIM,716mm Dia x 304.8mm W, 6 Bolts, CASE Silver

W12x28

2шт.

1

47136496

RIM,716mm Dia x 330mm W, 6 Bolts, CASE Silver

W13x28

2шт.

2

10790524

NUT,M16 x 1.5

1шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

12шт.

4

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

6

85700224

VALVE STEM

2шт.
