Запчасти Case IH JX1075N (1.92.97[02]) - CAB - HINGED WINDSHIELD, HANDLE AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

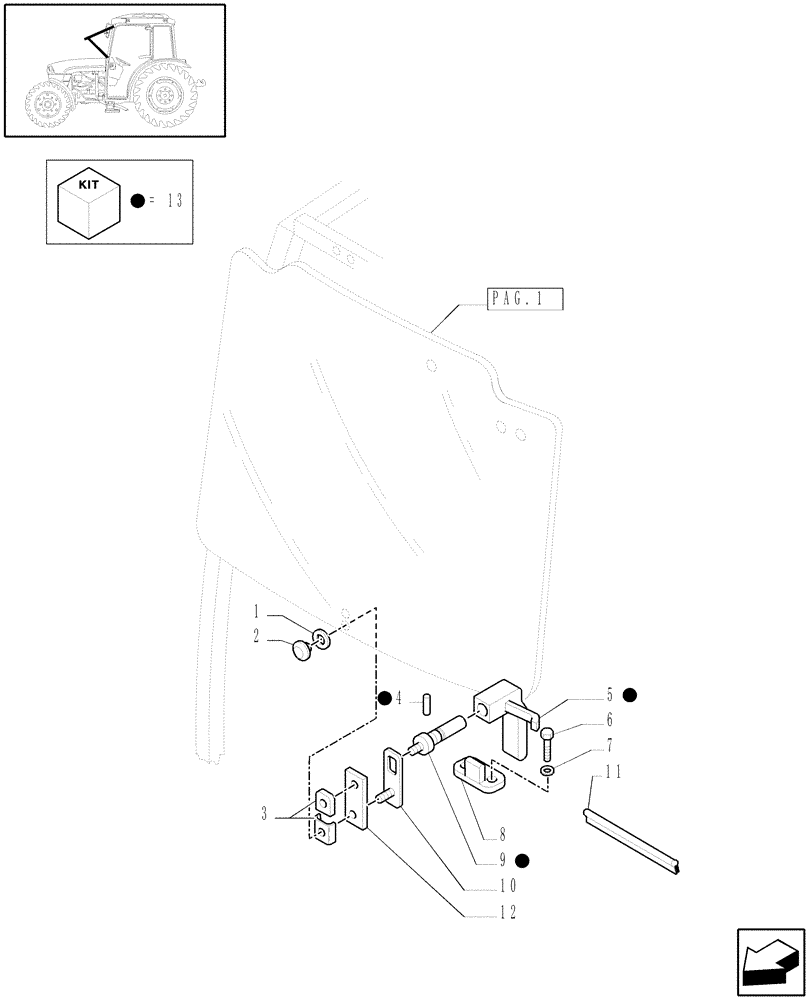

Схема запчастей Case IH JX1075N - (1.92.97[02]) - CAB - HINGED WINDSHIELD, HANDLE AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB
13
11
5
8
13
3
1
12
13
10
9
2
pag.1
13
7
6
4

Артикул

Название

Примечание

Количество

1

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

1шт.

2

5120540

KNOB

2шт.

3

5113395

SEAL, GLASS,Window, 30mm L

2шт.

4

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

5

87656446

HANDLE

1шт.

6

5182239

SCREW,Phillips Drive, Oval HD, M5 x 20mm

M5x20

4шт.

7

12637821

WASHER,5.15mm ID x 11mm OD x 1mm Thk

2шт.

8

44911574

STRIKER PLATE

, Serial Range: -C5745

1шт.

8

87656439

STRIKER PLATE

, Start Serial: D5745

1шт.

9

5183752

PIN,26mm OD x 64.5mm L

Incl. Ref. 4, 5

1шт.

10

5186866

PLATE

1шт.

11

5167998

SEAL

L=445

1шт.

12

44911521

COVER PLATE

2шт.

13

87658582

HANDLE

ASSY

1шт.

Выбрано товаров: 14
