Запчасти Case IH JX1075N (1.92.95[01]) - CAB - REAR WINDOW, HINGE AND WEATHER STRIP (10) - OPERATORS PLATFORM/CAB

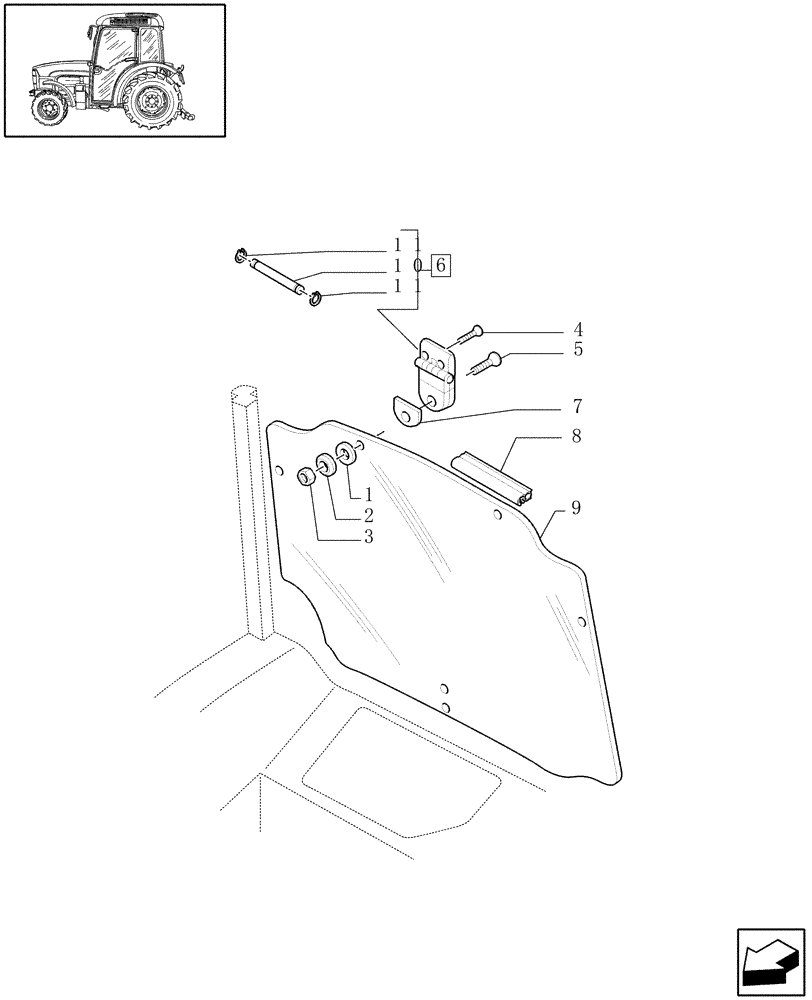

Схема запчастей Case IH JX1075N - (1.92.95[01]) - CAB - REAR WINDOW, HINGE AND WEATHER STRIP (10) - OPERATORS PLATFORM/CAB
4
11
11
1
8
2
9
3
6
10
7
5

Артикул

Название

Примечание

Количество

1

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

2

44911601

STOP

2шт.

3

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

4

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8x20

4шт.

5

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8x35

2шт.

6

5185205

HINGE

2шт.

7

44911858

SEAL,11mm ID x 26mm OD x 8.5mm Thk

RH

1шт.

7

44911859

SEAL,11mm ID x 26mm OD x 8.5mm Thk

LH

1шт.

8

87306874

SEAL,2896mm L

1шт.

9

44911795

CAB GLASS ASSY

Rear, JX1060V, JX1070V, JX1075V

1шт.

9

44911821

CAB GLASS ASSY

Rear, JX1070N, JX1075N

1шт.

10

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.

Выбрано товаров: 13
