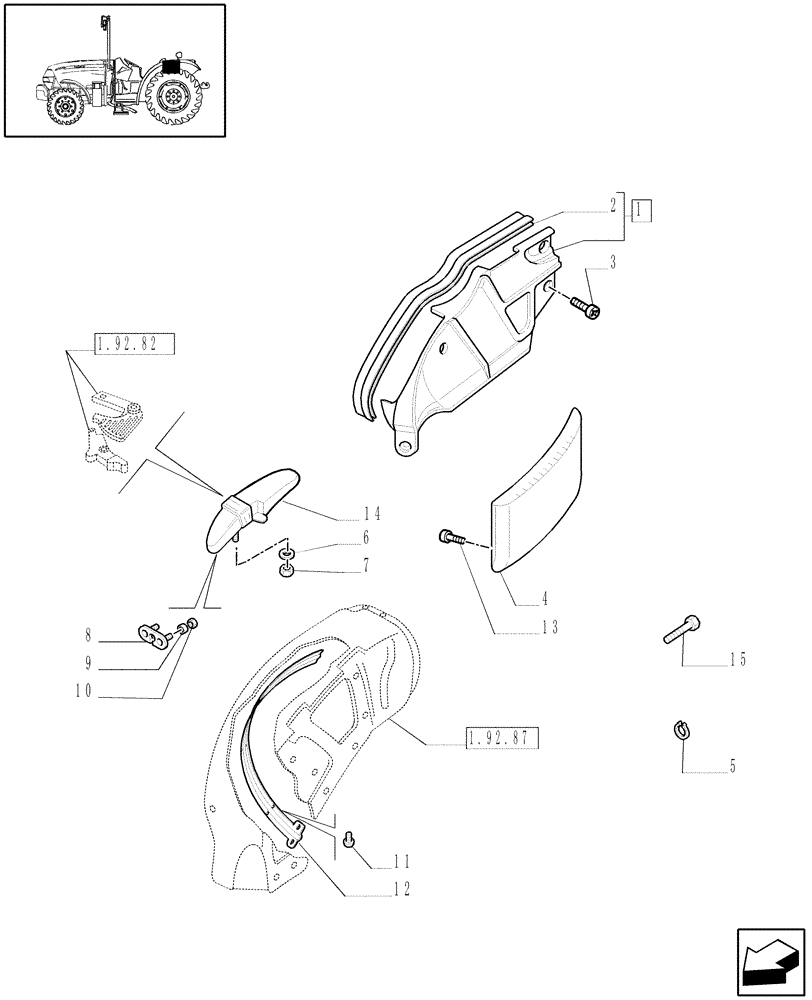

Запчасти Case IH JX1075N (1.92.88[02]) - COVERINGS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5190243

GUARD

1шт.

2

44914718

GASKET

L=322MM, Serial Range: Cut-Length

1шт.

3

13279314

SCREW,Pozidriv Pan Hd, M8 x 18mm

4шт.

4

5189664

SECTOR

TOOTHED SECTOR

1шт.

5

11064071

CLIP,M8 x 6 x 0.94mm

DIA=8

1шт.

6

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

12574221

NUT,M6 x 1, Cl 10

3шт.

8

5183610

COVER PLATE

1шт.

9

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.

10

86625075

NUT,M4 x 0.7, Cl 8

2шт.

11

5183681

SCREW,Cheese, M6 x 16mm

M6x16

2шт.

12

5187575

GUARD

1шт.

13

15687807

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 9.50mm

2шт.

14

47125536

COVER

1шт.

15

14082410

BOLT,Weld, M4 x 16mm

M4

2шт.
